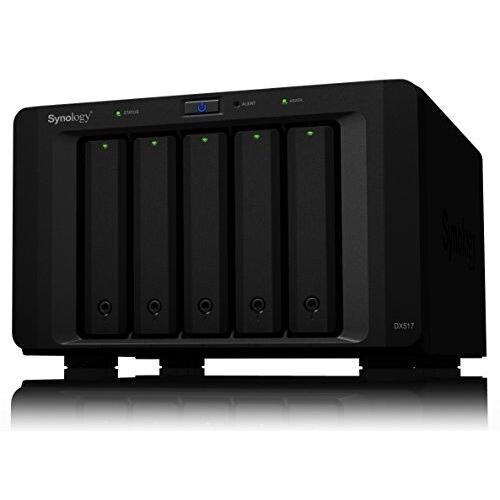

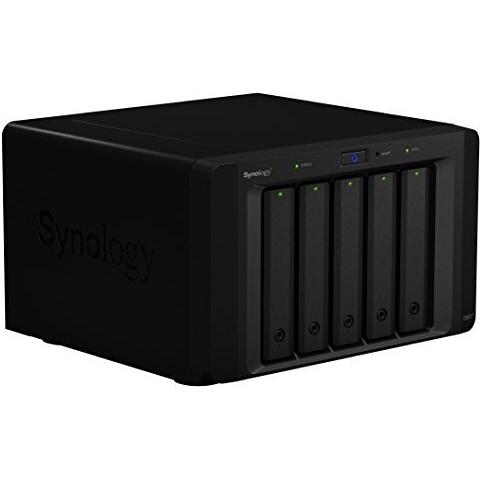

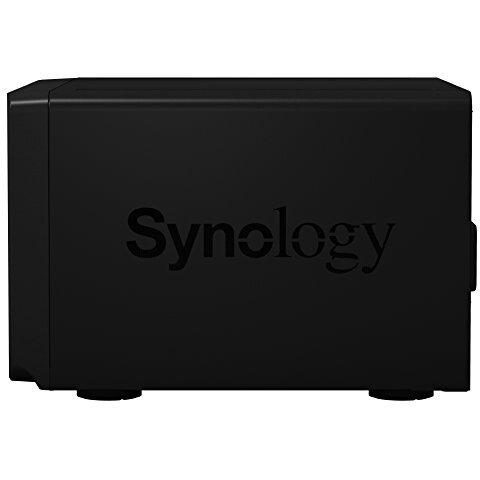

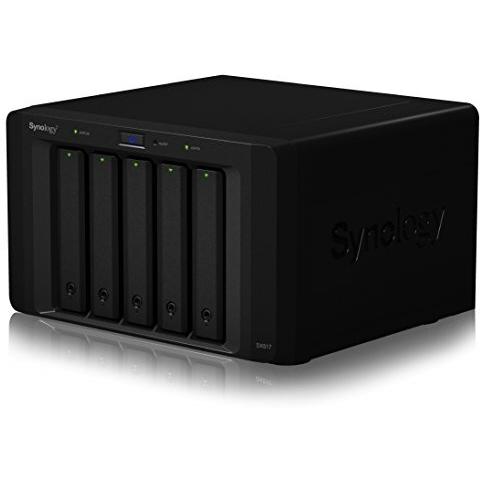

Synology DX517 Disk Array

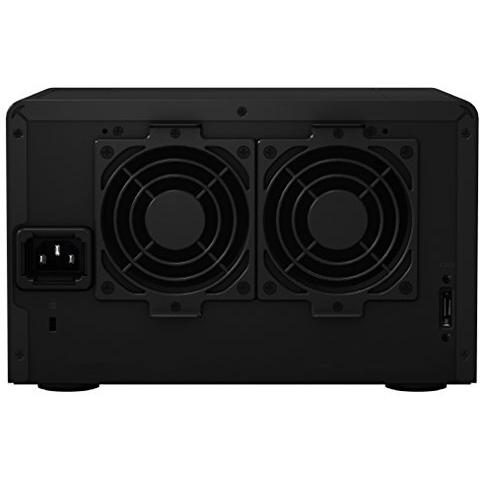

Elevate your storage with this compact black enclosure that fits five hot‑swap SATA III drives, supporting up to 70 TB. It features an integrated eSATA port, dual 80 mm fans for quiet cooling, and full RoHS compliance, ideal for Synology DS15/18 series.
Share: ![]()
![]()
![]()
![]()
![]()
![]()
LaptopHub
GamingKit
Quzo
Back to the Office
Sponsored
gotraka.com
Synology DX517 5-Bay Desktop Disk Array | HDD & SSD, 80 TB Max, Hot-Swap, Black
gotraka.com
19-07-2026 06:34:07
| Brand | Synology |
| EAN | 4711174722679 |
| ASIN | B06Y929H2M |
| Model | DX517 |
| MPN | DX517 |
| SKU | DX517 |
| Bays | 5 Bay |
| Cables included | 1 x eSATA cable |
| Compliant Standards | FCC Class B certified, RoHS, BSMI Class B |
| Cooling | Fan |
| Depth | 23.3 cm |
| Device class | Small & Medium Business |
| Device type | Storage enclosure |
| Dimensions | 248 x 157 x 233 (WxHxD mm) |
| DOM Module | No |
| Drive Form Factor Support | 5 x 2.5"/3.5" |
| Drive Interface Support | 1 x eSATA 5 x SATA III - 6Gb/s |
| Expansion bays | 5 (total) / 5 (free) x hot-swap - 2.5" / 3.5" shared |
| Harmonized System HS code | 84717020 |
| Height | 15.7 cm |
| Hot-swap drive bays | Yes |
| Humidity range operating | 5 - 95% |
| Internal Flash Memory | No |
| LAN Type | N/A |
| Maximum supported storage capacity | 70 TB |
| Power consumption operational | 29.9 Watt |
| Power Device | Internal power supply |
| Power Provided | 200 Watt |
| Sound Emission | 30 dBA |
| Storage drive sizes supported | 3.5" |
| Supported storage drive interfaces | Serial ATA, Serial ATA II, Serial ATA III |
| Sustainability certificates | RoHS |
| TAA Compliant | Yes |
| Type | No HDD - hot-swap |
| Voltage required | AC 120/230 V - 50 - 60 Hz |
| Weight | 3.91l kg |
| Width | 24.8 cm |
