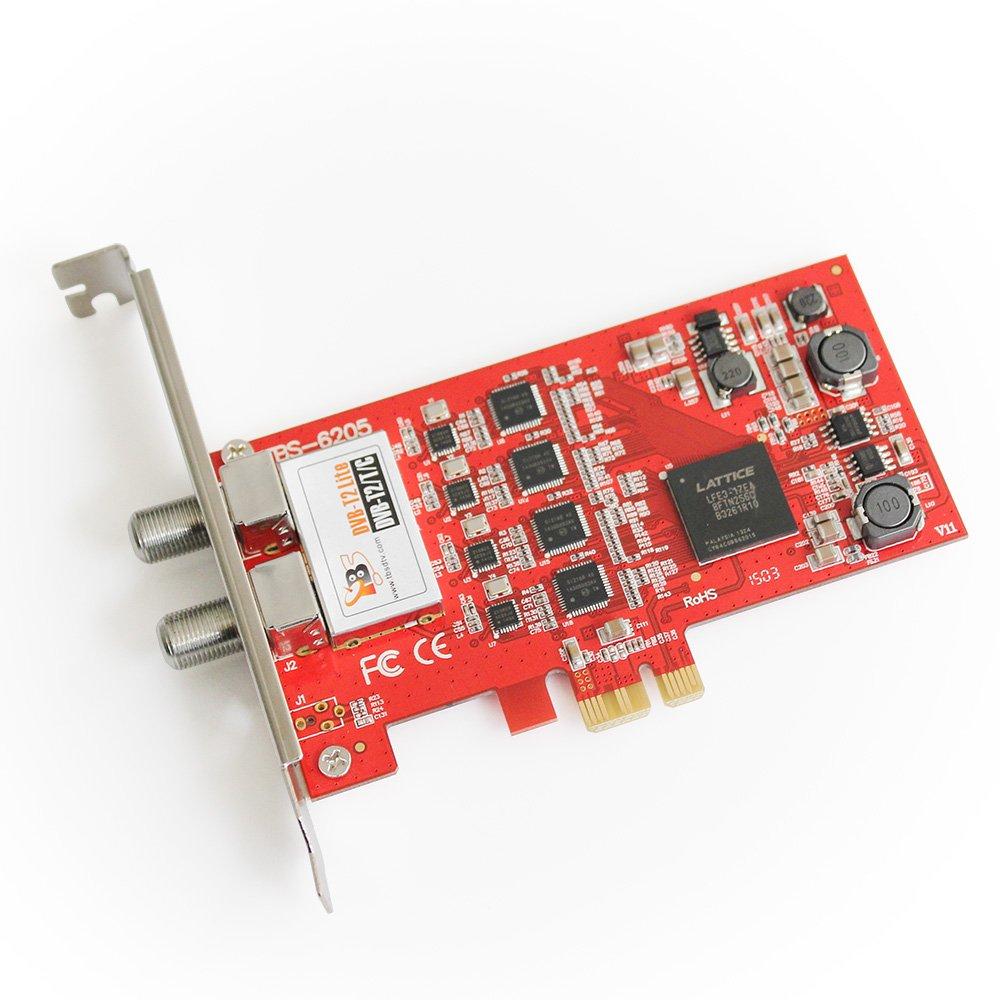

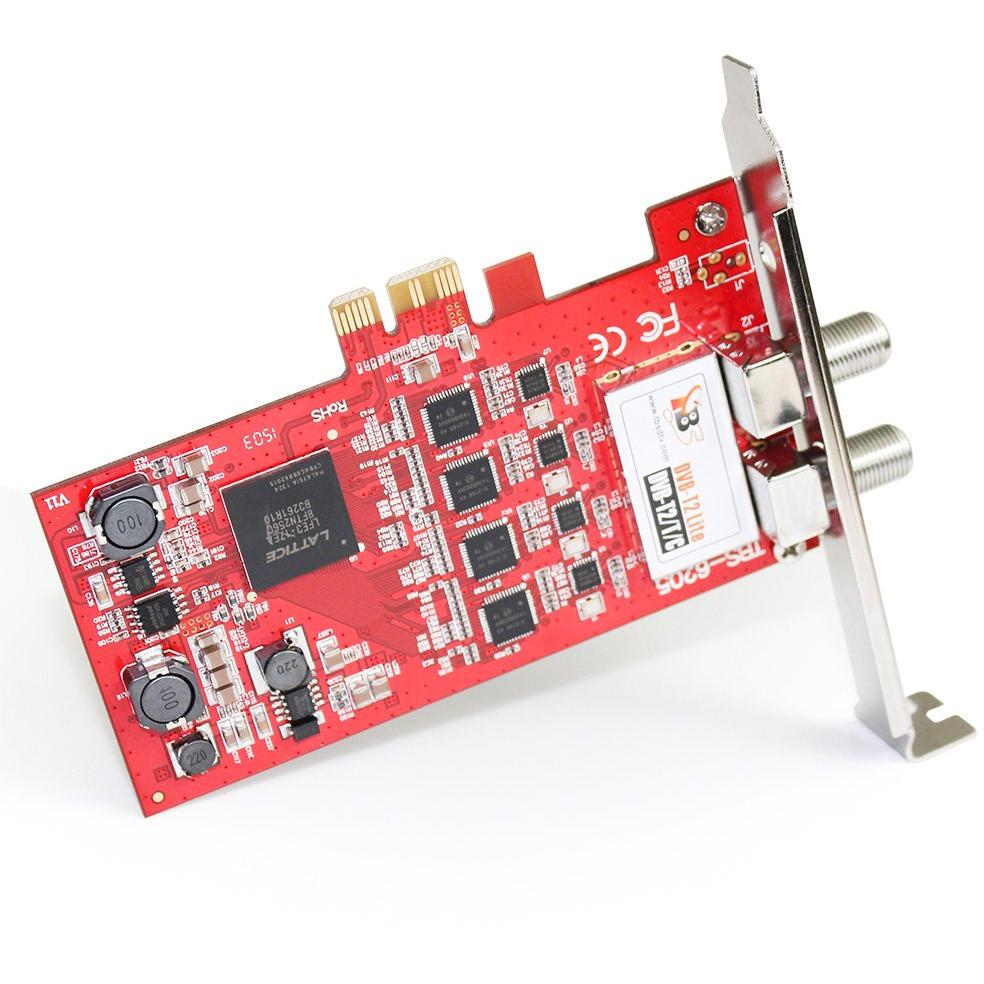

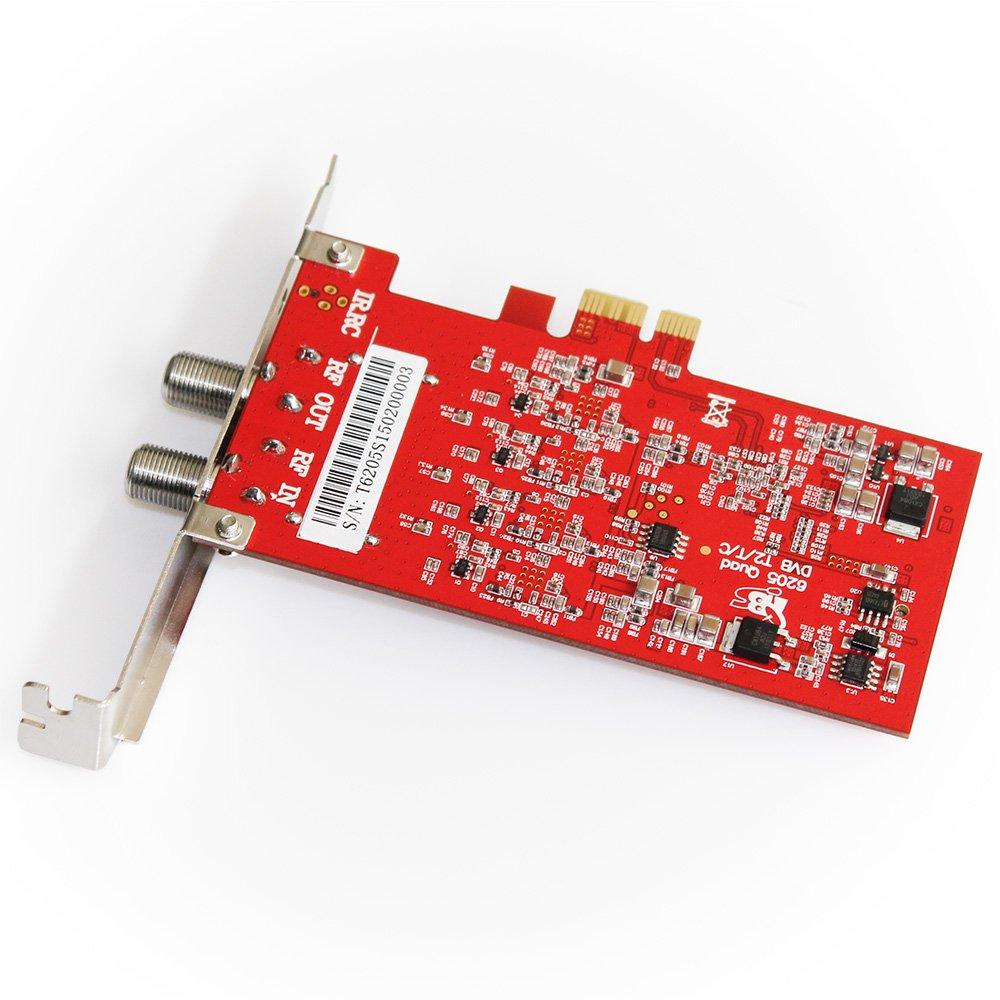

TBS 6205 Quad Freeview DVB-T2/T/C Terrestrial / Cable Quad TV Tuner PCIe Card
The TBS 6205 PCIe card delivers four independent DVB‑T2/T/C channels across a 47–862 MHz band, supporting code rates from 1/2 to 7/8. Its slim 115 mm depth and low 9 W power make it ideal for desktop or HTPC setups on Windows or Linux.
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
| Brand | TBS |
| MPN | TBS6205 |
| SKU | 6205 |
| EAN | 6947229062058 |
| ASIN | B00VK0R3KE |
| Model | TBS6205 |
| Compliance | Fully compliant with DVB-C and ITU J83 A/B/C |
| Depth | 115mm |
| Electrical Power Consumption | 9w |
| Form factor | PCI |
| Formats | Code rate: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 7/8 |
| Frequency band | 47~862 MHz Tuning Range |
| Height | 68.7mm |
| Operating Systems Supported | Windows 2000/XP/Vista/7/8/10 or Linux |
| Operating temperature | -10øC ~ 70øC |
| Software Included | No |
| System requirements | Pentium 4 2.0 GHz, Pentium M 1.3 GHz |
| Warranty | 1 Year |
