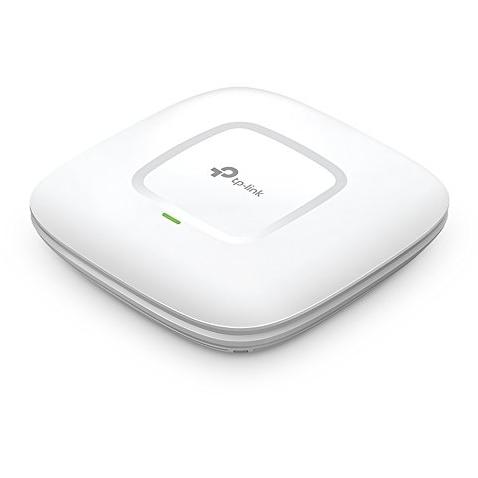

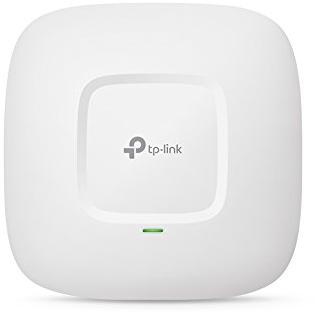

A white ceiling‑mounted access point offering 300 Mbps on 2.4 GHz with two omni antennas, passive PoE support and one RJ‑45 port. Manage it free via Omada software, configure up to eight SSIDs, VLANs, QoS, and client isolation from a web interface.
| Brand | TP-LINK |
| EAN | 6935364091637 |
| ASIN | B00VQ8P47O |
| MPN | EAP110 (UK) |
| Model | EAP110 (UK) |
| SKU | EAP110 (UK) |
| 2.4 ghz | Yes |
| 5 ghz | No |
| Advanced functions | See Overview |
| Antenna | Internal |
| Antenna gain level maximum | 4 dBi |
| Antenna Qty | 2 |
| Authentication method | RADIUS |
| Cables included | AC |
| Cabling technology | 100 Base |
| Capacity | Maximum number of configured SSIDs: 8 |
| Case colour | White |
| Certification | CE, FCC, RoHS |
| Compliant Standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n |
| Connectivity technology | Wireless |
| Data Link Protocol | Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Data transfer rate | 300 Mbps |
| Depth | 172.3 mm |
| Device type | N/A |
| Directivity | Omni-directional |
| Encryption | 64/128/152-bit WEP |
| Encryption algorithm | 128-bit WEP, 64-bit WEP, 152-bit WEP, WPA, WPA-PSK, WPA2-PSK, WPA2-Enterprise |
| Ethernet LAN ports | 1 |
| Firewall | Yes |
| Form factor | External |
| Frequency | 2.4 GHz |
| Gain level | 3 dBi |
| Harmonized System HS code | 85176990 |
| Height | 29.5 mm |
| Humidity range operating | 10 - 90% (non-condensing) |
| Included accessories | PoE injector, wall mounting kit |

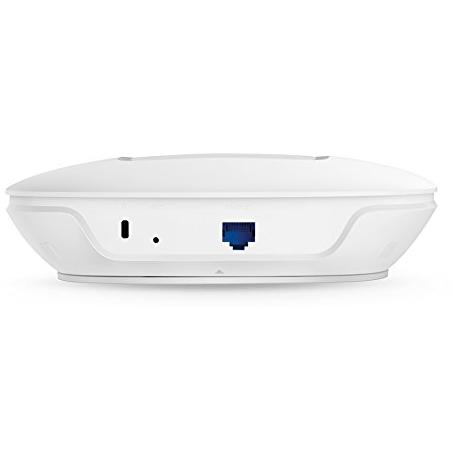

| Interfaces | 1 x 100Base-TX (PoE) - RJ-45 |
| LAN Ports | 1 x RJ-45 |
| LED indicators | Power |
| MAC address filtering | Yes |
| Management | See manufacturers link (next to product images) |
| Mounting kit | Yes |
| Networking standards | IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.1x |
| Operating Systems Supported | Microsoft Windows XP, Vista, Windows 7, Windows 8 |
| Operating temperature | 0 - 40 °C |
| Package type | Box |
| Placement | Ceiling, Wall |
| Power consumption | 2.8 W |
| Power consumption operational | 7.7 Watt |
| Power Device | External power adapter |
| Quick start guide | Yes |
| Rate limiting | Yes |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 2c, HTTP, HTTPS, CLI |
| Reset button | Yes |
| RF Network Standard | 802.11b/g/n |
| Security algorithms | 64-bit WEP,128-bit WEP,152-bit WEP,HTTPS,SNMP,SNMPv2,SSH,WPA,WPA-PSK,WPA2-Enterprise,WPA2-PSK |
| Security Protocols | WEP (128 bit) WEP (152 bit) WEP (64 bit) WPA WPA-PSK WPA2-Enterprise WPA2-PSK |
| Software Included | Drivers & Utilities |
| Specification | No |
| Status indicators | System |
| Storage relative humidity | 5 - 90 % |
| Storage temperature | -40 - 70 °C |
| Syslog | Yes |
| Transmit power | 20 dBm |
| Virtual LAN features | SSID-based VLAN assignment |
| VLAN support | Yes |
| Warranty | Three years warranty. |
| Web-based management | Yes |
| Width | 189.4 mm |
| Wireless Band | Single Band |
