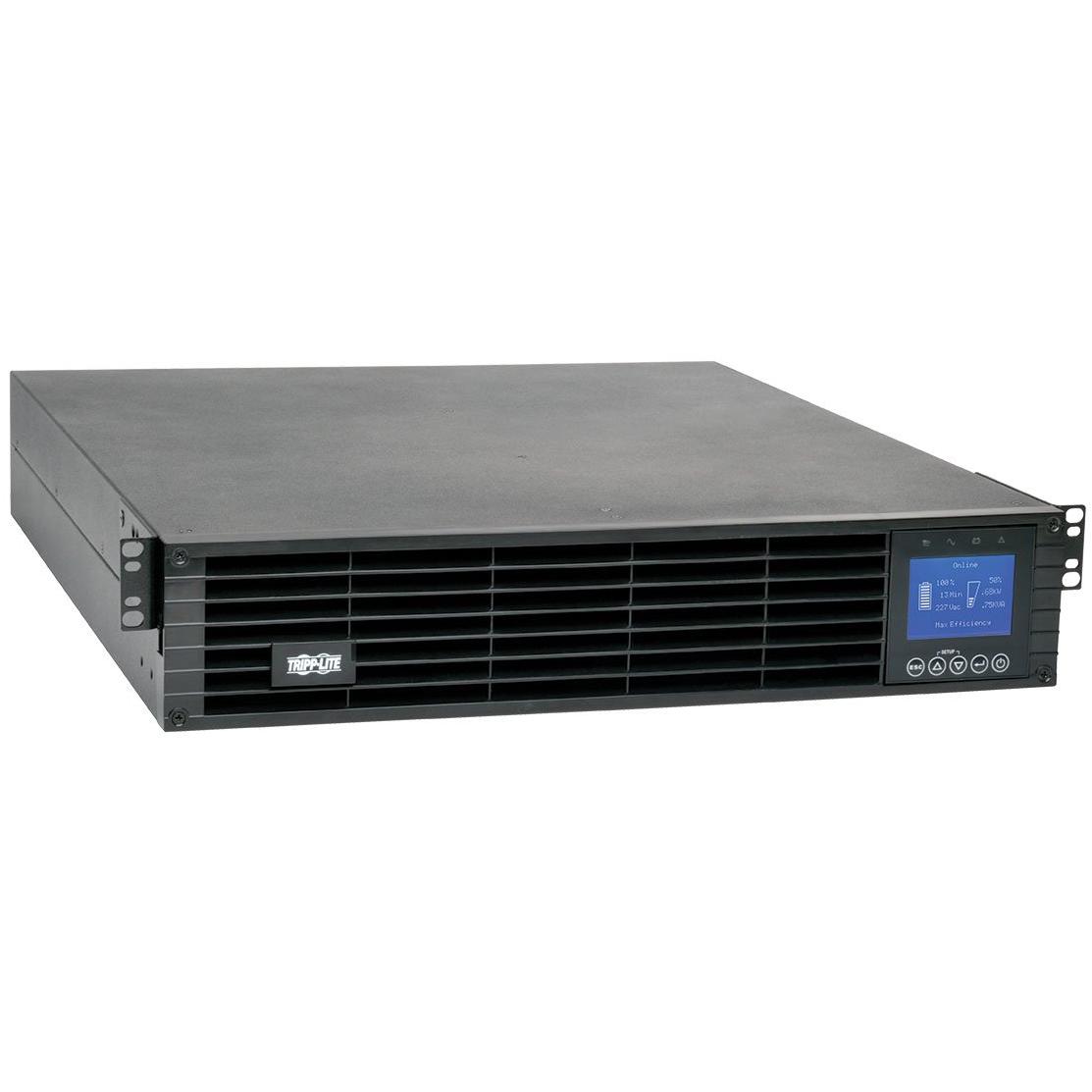

Tripp Lite USB DB9 UPS
Reliable 2U rack‑mounted UPS offers 1000VA/900W double‑conversion power with extended run, LCD status, SNMP, USB and DB9 interfaces, hot‑swap battery, EMI filtering, 93% efficiency and a 4‑minute full‑load backup.
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
| Brand | Tripp Lite |
| EAN | 0037332185648 |
| ASIN | B078BCT9YQ |
| Model | SUINT1000LCD2U |
| MPN | SUINT1000LCD2U |
| AC outlet types | C13 coupler, C14 coupler |
| Approvals | IEC62040-1:2008+A1; UL1778 5th; Meets EMI approvals EN62040-2 (Cat C2), FCC Class A |
| Audible alarm(s) | Yes |
| Control panel | 5 front panel switches: On/Off, Up, Down and Escape |
| Efficiency | 93% |
| Environmental | , Operating Temperature 0 to 40°C - Humidity 5 to 95% |
| Filtering | , EMI/RFI noise filtering |
| Input connection type | 1 x C14 |
| Input voltage range | 200 to 240V AC |
| Interface port | 1 x USB; 1 x DB9; 1 x Contact Closure; 1 x EPO; 1 x SNMP Slot |
| Master (outer) case gross weight | 20 kg |
| Master outer case height | 24.4 cm |
| Master outer case length | 59.7 cm |
| Master outer case width | 50.3 cm |
| Maximum current | 4.99 A |
| Maximum input operation voltage | 240 V |
| Minimum input operation voltage | 200 V |
| Output capacity | 1kVA |
| Output connections | 6 x C13 |
| Power factor | 0.9 |
| Power protection features | Over voltage, Under voltage |
| Rack capacity | 2U |
| Sustainability certificates | RoHS, ENERGY STAR |
| Typical backup time at full load | 4.7 min |
| Typical backup time at half load | 12.3 min |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
