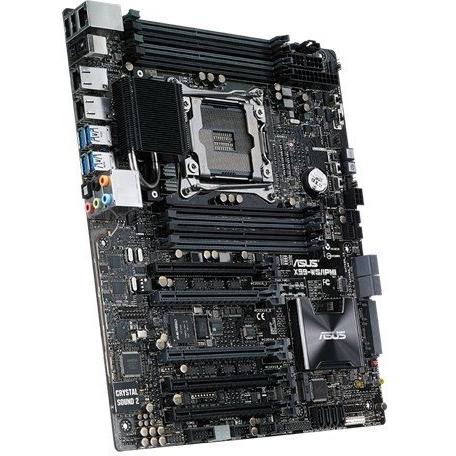

X99 IPMI Control Center
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
| Brand | ASUS |
| EAN | 0886227921331 |
| ASIN | B00ZPS66GY |
| Model | X99-WS/IPMI |
| MPN | X99-WS/IPMI |
| ACPI version | 5.0 |
| Audio chip | Realtek ALC1150 |
| Audio output channels | 7.1 channels |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Bundled software | Anti-virus |
| Cables included | SATA |
| Chassis intrusion connector | Yes |
| Compatible processor series | Intel Core i7 |
| Component for | PC |
| Cooling type | Passive |
| CPU fan connector | Yes |
| Depth | 254 mm |
| Drivers included | Yes |
| Ethernet interface type | Fast Ethernet,Gigabit Ethernet |
| Ethernet LAN | Yes |
| Front panel audio connector | Yes |
| Headphone outputs | 1 |
| LAN controller | Intel® I210-AT |
| Memory channels | Quad-channel |
| Memory slots type | DIMM |
| Microphone in | Yes |
| Motherboard chipset | Intel® X99 |
| Motherboard chipset family | Intel |
| Motherboard form factor | ATX |
| Non-ECC | Yes |
| Number of chassis fan connectors | 4 |
| Number of memory slots | 8 |
| Number of SATA connectors | 10 |
| Processor socket | LGA 2011-v3 |
| RAID levels | 0,1,5,10 |
| S/PDIF out connector | Yes |
| S/PDIF out port | Yes |
| Supported memory clock speeds | 2133,2400,2666,2800,3000,3200 MHz |
| Supported storage drive interfaces | Serial ATA III |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 2 |
| Width | 305 mm |
