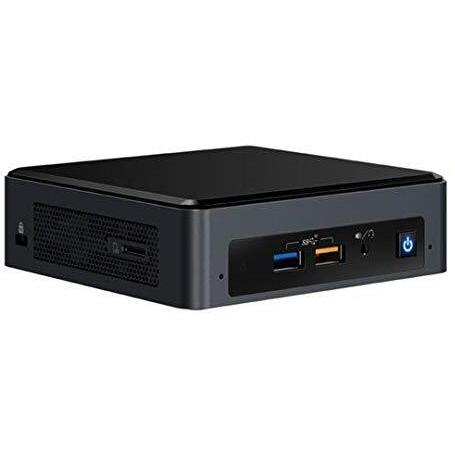

8th Generation i5 Mini PC Barebones
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
| Brand | Intel |
| EAN | 5032037133685 |
| ASIN | B07K3XWCPX |
| Model | BOXNUC8I5BEK3 |
| MPN | BOXNUC8I5BEK3 |
| Architecture | Coffee Lake |
| Audio output channels | 7.1 channels |
| Base GPU Speed | 300 MHz |
| BIOS memory size | 64 Mbit |
| BIOS type | EEPROM |
| Bluetooth | Yes |
| Bluetooth version | 5 |
| Built-in processor | Yes |
| Burst frequency | 3.8 GHz |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Card reader integrated | Yes |
| Certification | CISPR 32, FCC, ICES, EN, ETSI EN, AS/NZS, VCCI, KN, CNS, RoHS, WEEE |
| Chassis type | UCFF |
| Chipset | Intel SoC |
| Clock speed | 2.3 GHz |
| Colour | Black |
| Colours | Black/ Gunmetal |
| Compatible memory cards | MicroSDXC |
| Compatible operating systems | Windows 10, 64-bit* |
| Cooling type | Active |
| CPU Cache | 6MB |
| CPU Cooler | Air Cooled |
| CPU Included | Yes |
| CPU Model | 8259U |
| CPU Socket | Integrated CPU |
| DC input voltage | 12-19 DC |
| DC-in jack | Yes |
| Depth | 112 mm |
| Dimensions | 112 x 36 x 117 (mm WxHxD) |
| Discrete GPU | No |
| Displays Supported | 3 |
| Drive bays | N/A |
| ECC | No |
| Edition | Intel NUC Kit NUC8i5BEK |
| Embedded options available | No |
| Enhanced intel speedstep technology | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN ports | 1 |
| Execute disable bit | Yes |
| Expansion slots | 1 x M.2, 22-30 (Occupied by WiFi Card) 1 x M.2, 22-42/80, PCIe Gen3/SATA |
| Form factor | Intel NUC (Short) |
| GPU Cores | 48 |
| GPU Memory Size | 128MB |
| GPU Memory Type | eDRAM |
| Graphics adapter | Iris Plus Graphics 655 |
| Graphics adapter family | Intel |
| Graphics interface | On-board |
| Graphics output | 2.0 a |
| Harmonized System HS code | 8471500150 |
| HDMI version | 2 |
| Height | 36 mm |
| Idle states | Yes |
| Intel 64 | Yes |
| Intel clear video technology | Yes |
| Intel flex memory access | Yes |
| Intel rapid storage technology | Yes |
| Intel trusted execution technology | No |
| Intel TSX-NI | No |
| Intel Virtualization Technology | VT-d,VT-x |
| Internal I/O | 1 x CEC Connector 1 x Front Panel Connector 2 x USB 2.0 Header |
| Keyboard / mouse included | No |
| LED indicators | Yes |
| M.2 card slot (storage) | 22x42/80 |
| Manufacturing process | 14 nm |
| Maximum GPU Resolution | 4096x2304 (4K) @60Hz |
| Maximum GPU Speed | 1050 MHz |
| Maximum graphics adapter memory | 32768 MB |
| Maximum memory capacity | 32GB (2x16GB) |
| Maximum TDP | 28 W |
| Memory bandwidth maximum. | 38.4 GB/s |
| Memory capacity included | RAM Memory Not Included - Please Buy Separately |
| Memory channels | Dual-channel |
| Memory included | No |
| Memory slots type | SO-DIMM |
| Memory speed | DDR4 - 2400 |
| Memory type | DDR4 SO-DIMM |
| Memory Type ECC | Non-ECC |
| Memory Type R/U | UDIMM (Unbuffered) |
| Memory voltage | 1.2 V |
| Motherboard form factor | UCFF (4" x 4") |
| Multi-GPU Configuration | No |
| Network Chip | 1 x Intel (Gigabit LAN) 1 x Intel Wireless-AC 9560 (ac WiFi, MU-MIMO, BT5) |
| Network Interface Type | 802.11ac WiFi LAN Wired Gigabit LAN (10/100/1000) |
| Number of Threads | 8 |
| On-board graphics adapter | Yes |
| On-board/Integrated Graphics | Yes |
| Operating system | O/S Not Included - Please Buy Separately |
| Operating system included | No |
| Operating temperature | 0 - 40 °C |
| PCI Express slots version | 3.0 |
| Power supply | 90 W |
| Power supply type | External AC adapter |
| Processor model | i5-8259U |
| Processor socket | BGA 1528 |
| Product family | Intel NUC |
| Product series | Intel NUC kit |
| Product Type | Mini PC barebone |
| PSU Redundancy | Single PSU |
| RAID levels | 0,1 |
| RAID Support | Not Supported |
| Remote control included | No |
| Removable memory card slot | microSDXC with UHS-I support |
| Safety | IEC 60950-1, UL 60950-1, EN 60950-1, CAN/CSA-C22.2 No. 60950-1 |
| Status | Launched |
| Storage drive included | No |
| Storage drive type | Storage Drive Not Included - Please Buy Separately |
| Storage temperature | -20 - 60 °C |
| Supported memory clock speeds | 2400 MHz |
| Supported storage drive types | SSD |
| System management BIOS SMBIOS version | 2.5 |
| Thermal monitoring technologies | Yes |
| Unlocked CPU | No |
| VESA Mountable | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Width | 117 mm |
