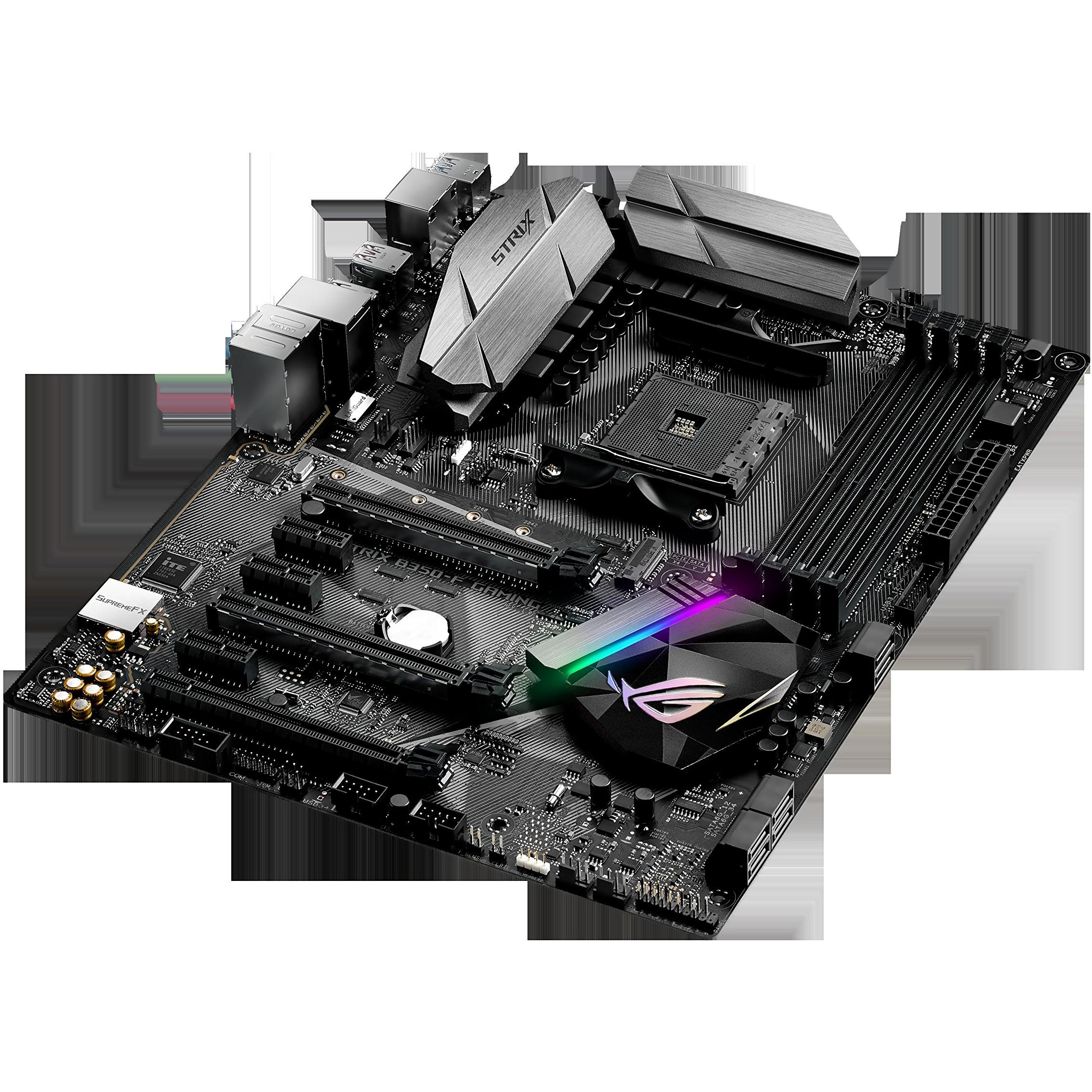

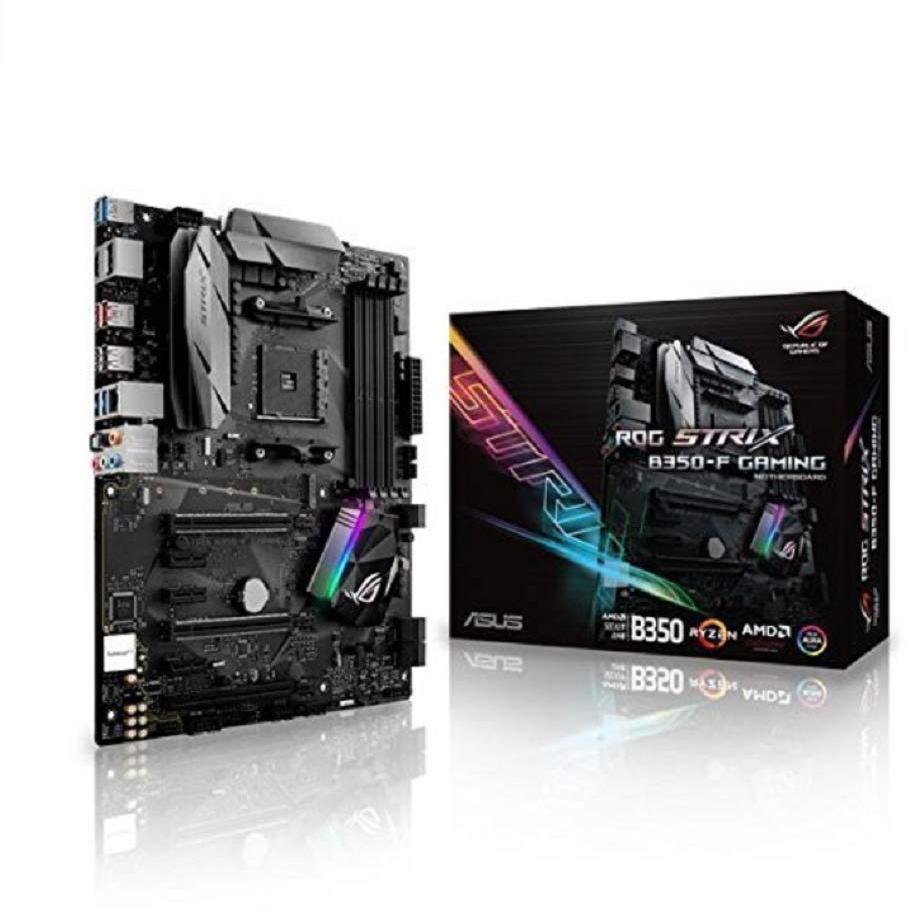

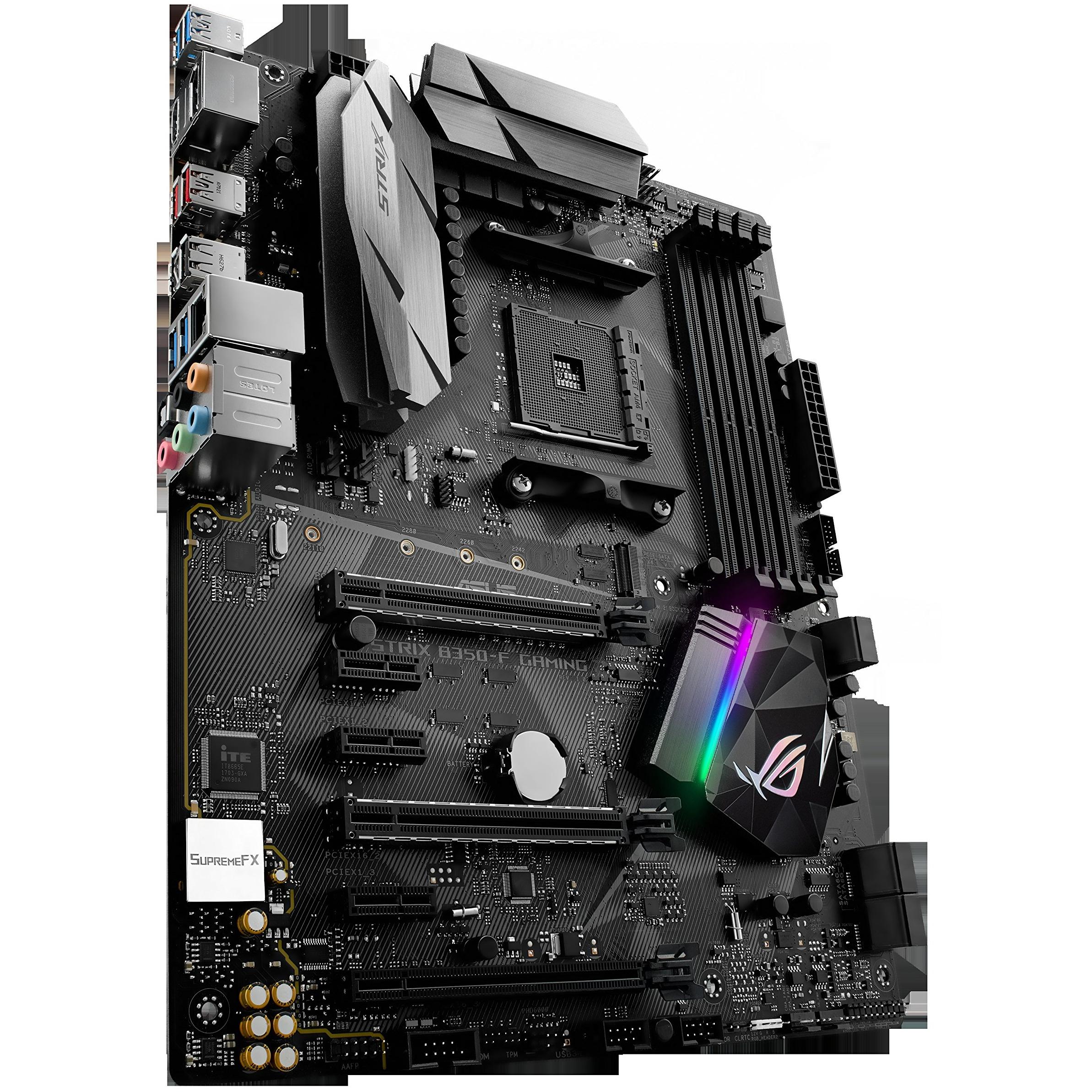

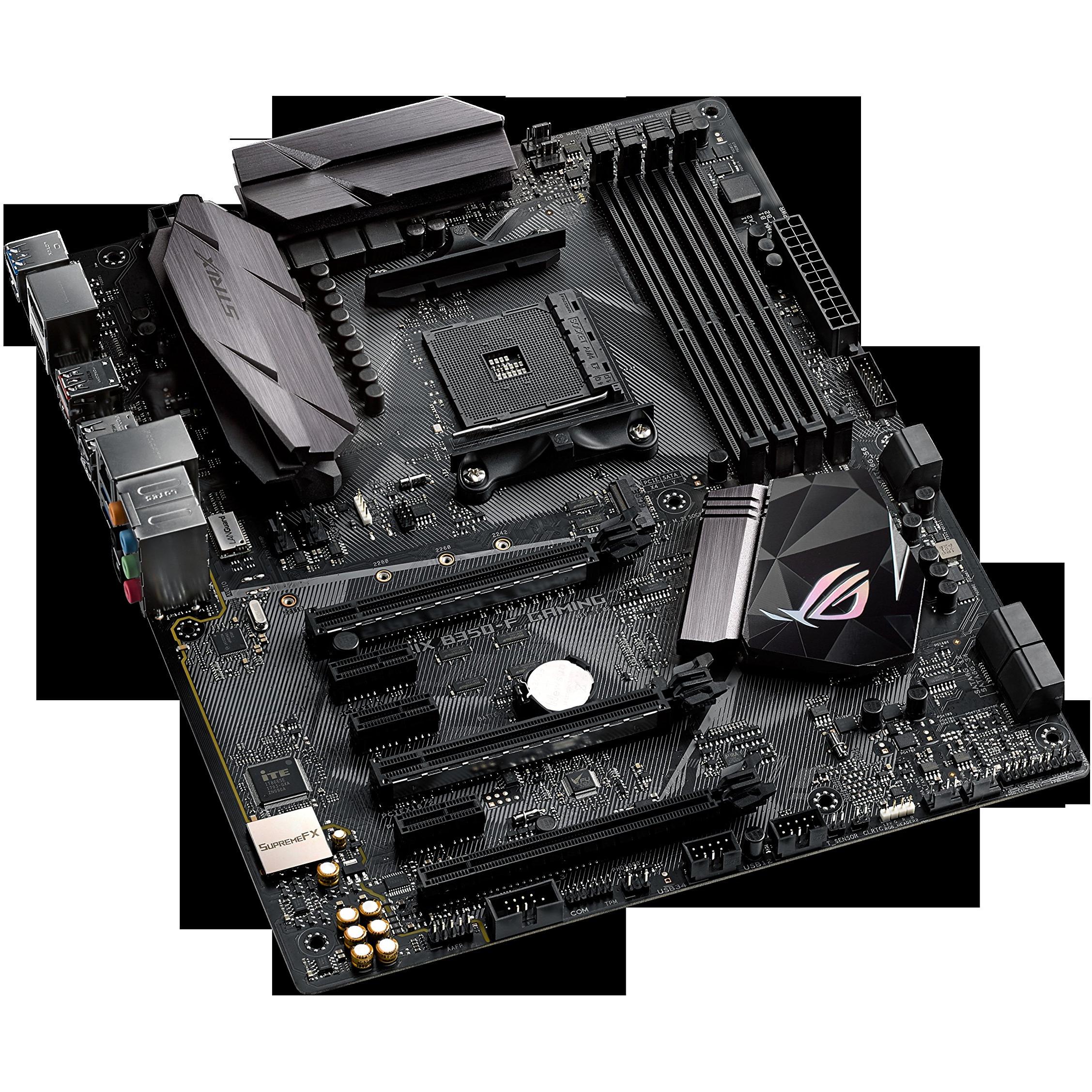

ASUS ROG STRIX B350-F Gaming Motherboard
350.00 USD
ROG Strix B350‑F delivers AMD AM4 support, dual‑channel DDR4 up to 64 GB, a single PCIe 3.0 x16 slot, one M.2 key‑M, six SATA III ports, Gigabit LAN, HDMI/DP outputs, SupremeFX 8‑ch audio and RGB headers.
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
quietpc.us
| Brand | ASUS |
| EAN | 4712900747126 |
| MPN | ROG STRIX B350-F GAMING |
| SKU | 90MB0UJ0-M0EAY0 |
| ASIN | B072C6VPZJ |
| Model | ROG STRIX B350-F GAMING |
| ACPI version | 6.1 |
| Audio chip | Realtek S1220A |
| Audio output channels | 7.1 channels |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Cables included | SATA |
| Clear CMOS jumper | Yes |
| Compatible processor series | AMD A,AMD Ryzen |
| Component for | PC |
| CPU fan connector | Yes |
| Depth | 244 mm |
| Displayport Version | 1.2 |
| DisplayPorts quantity | 1 |
| Drivers included | Yes |
| ECC | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Graphics adapter family | AMD |
| HDMI version | 1.4b |
| LAN controller | Intel® I211-AT |
| Manual | Yes |
| Maximum graphics adapter memory | 2048 MB |
| Maximum internal memory | 64 GB |
| Maximum resolution | 4096 x 2160 pixels |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Motherboard chipset | AMD B350 |
| Motherboard form factor | ATX |
| Non-ECC | Yes |
| Number of chassis fan connectors | 3 |
| Number of memory slots | 4 |
| Number of SATA III connectors | 6 |
| RAID levels | 0,1,10 |
| S/PDIF out port | Yes |
| Supported memory clock speeds | 2133,2400,2666,2933,3200 MHz |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 2 |
| Width | 305 mm |
| Windows operating systems supported | Windows 10 Education x64,Windows 10 Enterprise x64,Windows 10 Home x64,Windows 10 Pro x64 |
