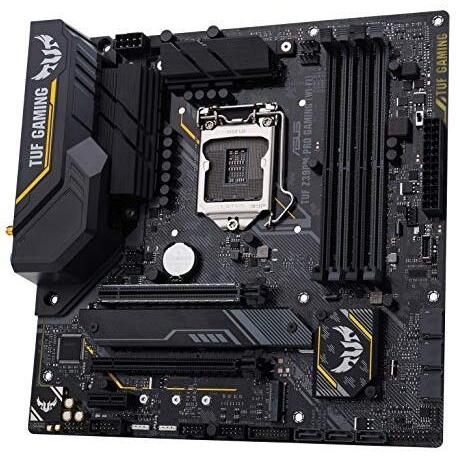

ASUS TUF Z390M-PRO Micro-ATX Motherboard
999999.99 USD
The ASUS TUF Z390M‑PRO micro‑ATX board powers Intel Core CPUs with Z390 chipset, dual‑channel DDR4 up to 4266 MHz, two PCIe 3.0×16 slots and integrated Wi‑Fi 5 plus Bluetooth 5.0. It features Realtek S1200A 8‑channel audio with premium capacitors, four USB 3.2 Gen 1 ports, one Gen 2 port, six SATA III connectors, two M.2 PCIe slots, Intel Rapid Storage and a robust TUF design for reliable gaming builds.
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
quietpc.us
| Brand | ASUS |
| EAN | 4718017124577 |
| Model | 90MB0Y00-M0EAY0 |
| MPN | 90MB0Y00-M0EAY0 |
| ASIN | B07HS8SD1X |
| ACPI version | 6.1 |
| Audio output channels | 7.1 channels |
| BIOS memory size | 16 Mbit |
| BIOS type | UEFI AMI |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Cables included | SATA |
| Chipset type | Intel Z390 |
| Clear CMOS jumper | Yes |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Component for | PC |
| CPU fan connector | Yes |
| Crossfire supported | Yes |
| Depth | 244 mm |
| DisplayPorts quantity | 1 |
| DVI port | Nein |
| Ethernet | GB-LAN |
| Ethernet LAN | Yes |
| Form factor | M-ATX |
| Front panel audio connector | Yes |
| Graphics adapter | Intel® UHD Graphics |
| Graphics adapter family | Intel |
| Integrated CPU | No |
| Intel rapid storage technology | Yes |
| LAN controller | Intel® I219-V |
| M.2 Formfaktor | 2242 |
| M.2 Mode | PCIe Mode |
| M.2 Slot | Ja |
| Manual | Yes |
| Maximum internal memory | 64 GB |
| Maximum resolution | 4096 x 2160 pixels |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Microphone in | Yes |
| Motherboard form factor | Micro ATX |
| Non-ECC | Yes |
| Number of chassis fan connectors | 2 |
| Number of memory slots | 4 |
| Number of SATA III connectors | 6 |
| Parallel processing technology support | CrossFireX,SLI |
| PCI slots | No |
| PCIe x16 Version | 3.0 |
| PCIe x4 slots | No |
| Processor | Socket 1151 v2 |
| Processor socket | LGA 1151 (Socket H4) |
| RAID levels | 0,1,5,10 |
| SATA2 Connectors | No |
| SATA2 RAID | No |
| SATA3 RAID | Yes |
| SLI support | No |
| Sound Onboard | Yes |
| Supported memory clock speeds | 2133,2400,2666,2800,3000,3200,3300,3333,3466,3600,3733,3866,4000,4133,4266 MHz |
| Unbuffered memory | Yes |
| USB 3.1 Gen1 connectors | 7 |
| VGA Port | No |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n) |
| WiFi | Yes |
| Windows operating systems supported | Windows 10 |
