| Brand |
Gigabyte |
| EAN |
0818313018380 |
| ASIN |
B00FZ2KY68 |
| Model |

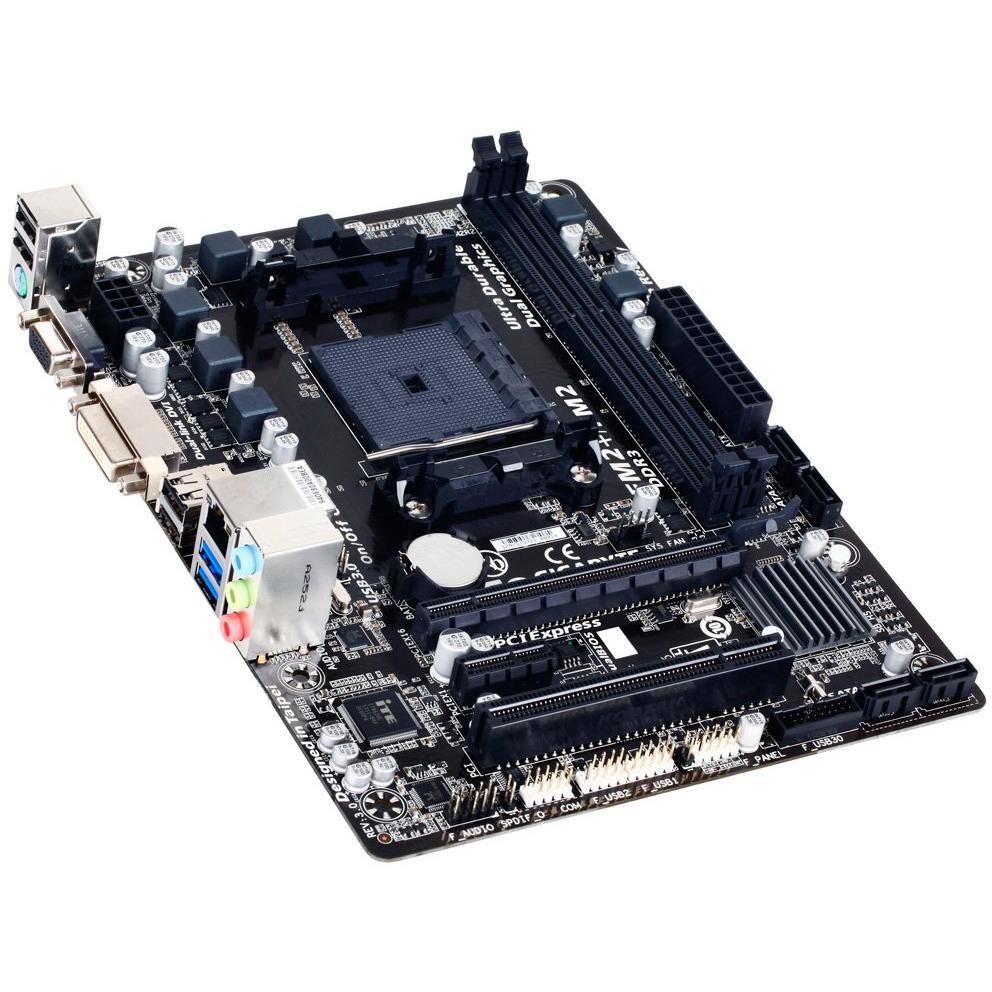

GA-F2A88XM-DS2 |
| MPN |
GA-F2A88XM-DS2 |
| ACPI version |
2.0a |
| Audio chip |
Realtek ALC887 |
| Audio output channels |
7.1 channels |
| BIOS memory size |
16 Mbit |
| BIOS type |
UEFI AMI |
| Bundled software |
Norton Internet Security |
| Chassis intrusion connector |
Yes |
| Clear CMOS jumper |
Yes |
| Compatible processor series |
AMD A |
| Component for |
PC |
| CPU fan connector |
Yes |
| Depth |
174 mm |
| Drivers included |
Yes |
| Dual link DVI |
Yes |
| DVI-D ports quantity |
1 |
| Ethernet interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Front panel audio connector |
Yes |
| Graphics adapter |
Radeon HD 7000 |
| Graphics adapter family |
AMD |
| Maximum graphics adapter memory |
2048 MB |
| Maximum internal memory |
64 GB |
| Maximum resolution |
2560 x 1600 pixels |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Memory voltage |
1.5 V |
| Microphone in |
Yes |
| Motherboard chipset |
AMD A88X |
| Motherboard form factor |
Micro ATX |
| Number of memory slots |
2 |
| Number of SATA connectors |
4 |
| On-board graphics adapter |
Yes |
| Parallel processing technology support |
Not supported |
| Power source type |
ATX |
| Quick installation guide |
Yes |
| RAID levels |
0,1,5,10,JBOD |
| S/PDIF out connector |
Yes |
| Supported memory clock speeds |
1333,1600,1866,2133 MHz |
| Supported memory types |
DDR3-SDRAM |
| Supported storage drive interfaces |
Serial ATA,Serial ATA II,Serial ATA III |
| TPM connector |
No |
| Width |
225 mm |
