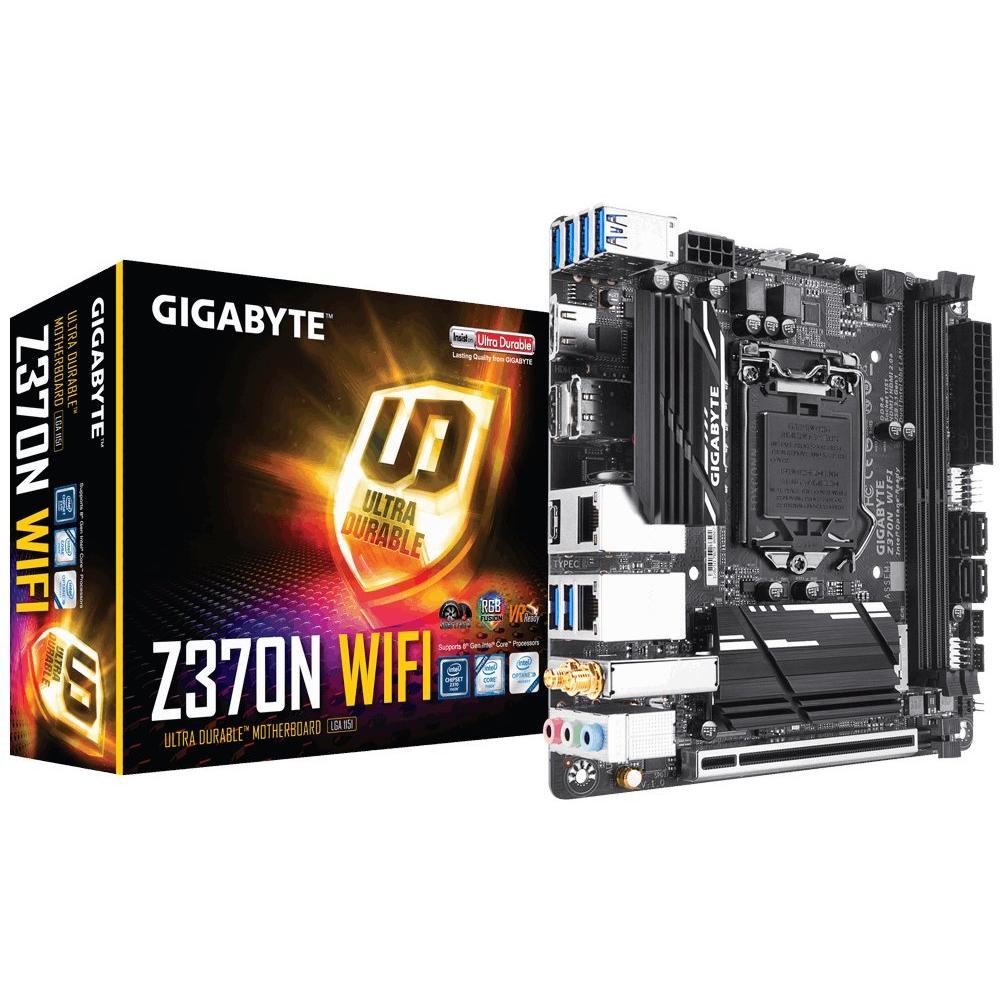

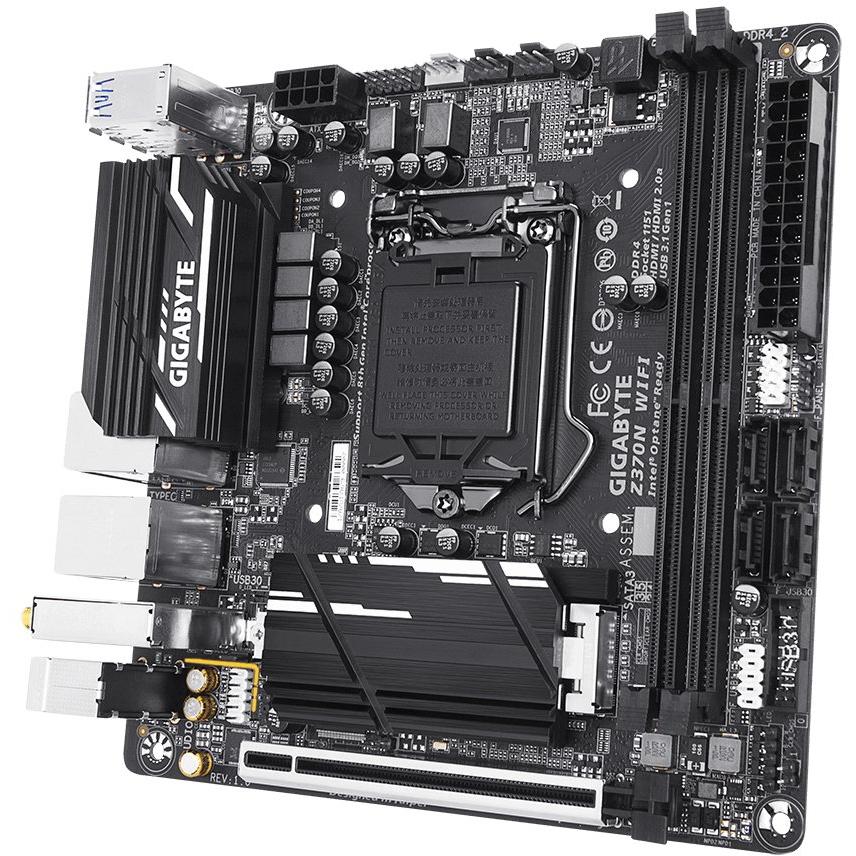

Gigabyte Z370N WIFI Mini-ITX Motherboard
Mini‑ITX motherboard powered by Intel Z370, fitting LGA 1151 CPUs with up to 32 GB DDR4 at 4400 MHz. It offers dual M.2, four SATA III, a PCIe x16 slot, Wi‑Fi ac, Bluetooth 4.2, two HDMI, one DisplayPort, Gigabit LAN, Realtek ALC1220 audio and six USB‑3.1 ports for compact yet feature‑rich builds.
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
| Brand | Gigabyte |
| EAN | 4719331802370 |
| ASIN | B075ZP365M |
| Model | Z370N WIFI |
| MPN | Z370N WIFI |
| ACPI version | 5.0 |
| Audio codec | Realtek ALC1220 codec |
| Audio output channels | 5.1 channels |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| Bundled software | Norton Internet Security, cFosSpeed |
| Chassis intrusion connector | Yes |
| Chipset | Intel Z370 |
| Clear CMOS jumper | Yes |
| Compatible processor series | Intel® Core™ i3, Intel Core i5, Intel Core i7 |
| Component for | PC |
| CPU | Intel Socket 1151 for 8th Generation Core i7/i5/i3/Pentium/Celeron Processors |
| CPU fan connector | Yes |
| Depth | 170 mm |
| DisplayPorts quantity | 1 |
| ECC | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Form factor | Mini-ITX, 170 x 170 mm |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Graphics | Intel HD Graphics support for HDMI 1.4 and Displayport |
| Graphics adapter | HD Graphics |
| Graphics adapter family | Intel |
| HDCP | Yes |
| HDMI ports quantity | 2 |
| LAN | 2x Intel Gigabit LAN ports (10/100/1000 Mbit) |
| Maximum graphics adapter memory | 1024 MB |
| Maximum internal memory | 32 GB |
| Maximum resolution | 4096 x 2304 pixels |
| Memory | 2x DIMM, Max. 32GB, DDR4, 2133 to 4400 (OC) MHz Non-ECC, Un-buffered Memory |
| Memory slots type | DIMM |
| Microphone in | Yes |
| Motherboard form factor | Mini ITX |
| Non-ECC | Yes |
| Number of SATA III connectors | 4 |
| Operating system | Windows 10 64-bit |
| PC Health Monitoring | FAN,Temperature,Voltage |
| Power source type | ATX |
| Processor socket | LGA 1151 (Socket H4) |
| RAID | Support for RAID 0, RAID 1, RAID 5, and RAID 10 |
| S/PDIF out connector | Yes |
| Supported memory clock speeds | 2133,2400,2666,2800,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4400 MHz |
| Unbuffered memory | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Windows operating systems supported | Windows 10 Education x64,Windows 10 Enterprise x64,Windows 10 Home x64,Windows 10 Pro x64 |
