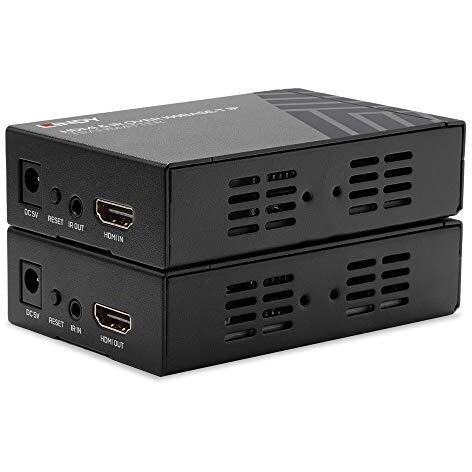

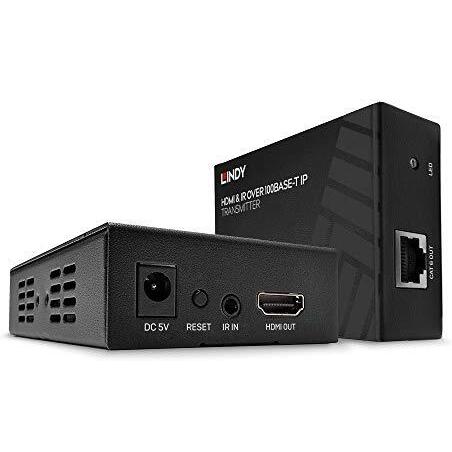

HDMI & IR OVER 100BASE-T IP EXTENDR
Transmit HDMI video up to 1920×1080 at 60 Hz and stereo PCM audio over a single CAT6 cable for distances of 100 m, while also relaying IR commands. The compact metal unit uses only 3 W and supports HDCP, 480i/720p/1080p formats with RJ‑45 connectivity.
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
| Brand | LINDY |
| Model | 38126 |
| MPN | 38126 |
| SKU | 38126 |
| EAN | 4002888381260 |
| ASIN | B018S4PKG8 |
| 3D | No |
| AC adapter included | Yes |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Audio formats supported | PCM |
| Audio output channels | 2.0 channels |
| Audio system | stereo |
| Bandwidth | 4.95 Gbit/s |
| Cable types supported | Cat5e, Cat6 |
| Certification | CE, UKCA, FCC, REACH, RoHS |
| Chipset | Taifatech 680 |
| Colour | Black |
| Colour depth | 8 bit |

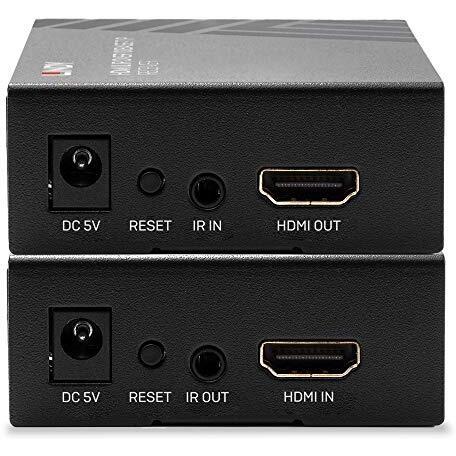

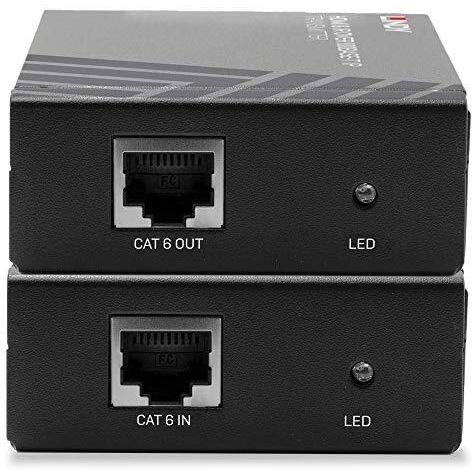

| Connection a | Transmitter: HDMI (F) / RJ45 (F) / IR (F) / DC5V Power |
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| External power adapter | Y |
| HDCP | Y |
| HDMI In | 1 |
| HDMI version | 1.2 |
| Image formats supported | JPG |
| Included power plug types | AU, EU, UK, US |
| LED indicators | Yes |
| Material | Metal |
| Maximum power consumption | 3 W |
| Maximum refresh rate | 60 Hz |
| Maximum resolution | 1920x1080 |
| Maximum transfer distance | 100 m |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Operating relative humidity | 20 - 90 % |
| Operating temperature | 0 - 40 °C |
| Operating voltage | 5 V |
| Package type | Box |
| Receiver dimensions (W x D x H) | 95 x 105 x 25 mm |
| Receiver weight | 245 g |
| Storage temperature | -20 - 60 °C |
| Supported network protocols | IP |
| Supported video modes | 480i,480p,576i,576p,720p,1080i,1080p |
| Sustainability certificates | REACH, RoHS |
| Type | AV transmitter & receiver |
