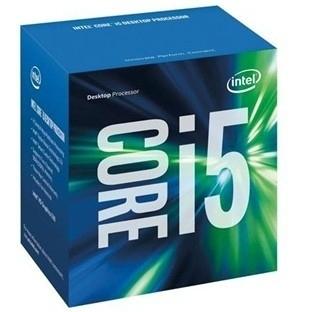

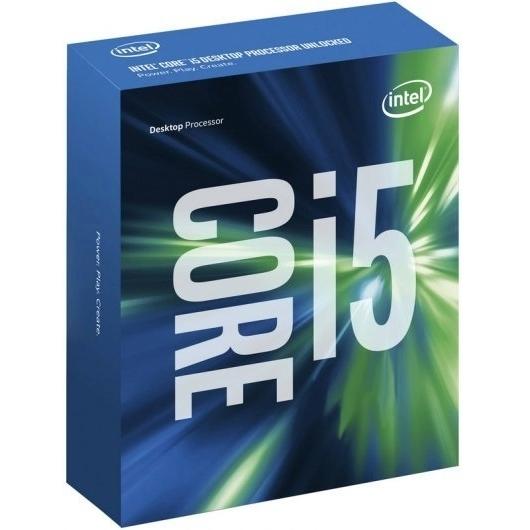

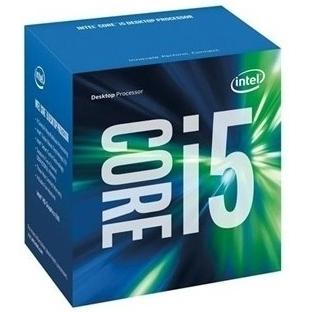

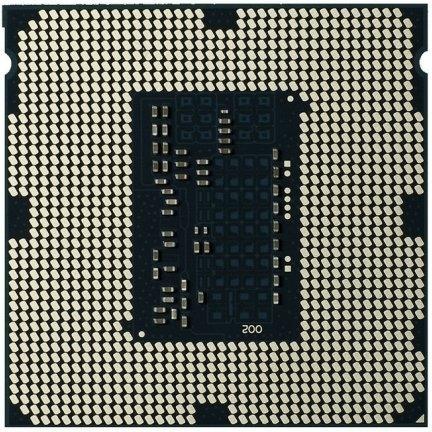

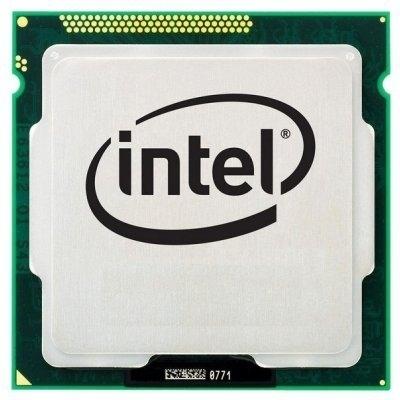

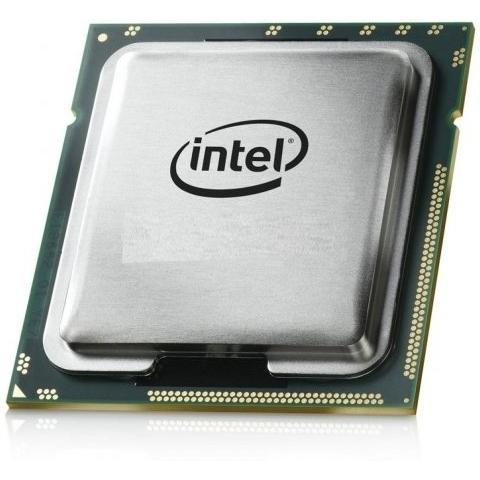

Intel Core i5-6600 3.30 GHz CPU

Quad‑core Intel Core i5‑6600 runs at 3.30 GHz with Turbo Boost to 3.90 GHz, featuring 6 MB Smart Cache and HD 530 graphics that support 4K via HDMI/DP. The 65W TDP processor fits LGA1151 boards, supports DDR4 up to 64 GB, and includes Intel VT‑x, AVX2, Quick Sync video, and Turbo Boost for efficient multitasking.

View Products on eBay

eBay

Brand	Intel
EAN	5032037076081
ASIN	B010T6D39O
Model	BX80662I56600
MPN	BX80662I56600
Born on date	Q3'15
Box	Yes
Bus bandwidth	8
Bus Type	DMI3
Bus type units	GT/s
Cache memory	6 MB
Component for	PC
Cooler included	Yes
Core count	Quad Core
CPU Speed	3.3 GHz
ECC	No
Embedded options available	No
Enhanced intel speedstep technology	Yes
Execute disable bit	Yes
Graphics & IMC lithography	14 nm
Graphics max dynamic frequency	1.15 GHz
Graphics output	eDP/DP/HDMI/DVI
Idle states	Yes
Intel 64	Yes
Intel clear video technology	Yes
Intel enhanced halt state	Yes
Intel Identity Protection Technology version	1
Intel Small Business Advantage SBA version	1.00
Intel trusted execution technology	Yes
Intel TSX-NI	Yes
L2 cache	6144 KB
Market segment	DT
Maximum graphics adapter memory	1740 MB
Maximum internal memory	65536 MB
Maximum number of PCI Express lanes	16
Maximum on-board graphics adapter memory	1781.76 MB
Maximum resolution & refresh rate (DisplayPort)	4096x2304@60Hz
Memory channels	Dual-channel
Memory channels supported by processor	Dual
Memory clock speeds supported by processor	2133,1333,1600,1866 MHz
Memory types supported by processor	DDR3L-SDRAM,DDR4-SDRAM
Memory voltage supported by processor	1.35 V
On-board graphics adapter	Yes
On-board graphics adapter 4K support	Yes
On-board graphics adapter base frequency	350 MHz
On-board graphics adapter DirectX version	12
On-board graphics adapter dynamic frequency	1150 MHz
On-board graphics adapter ID	1912
On-board graphics adapter maximum resolution (HDMI)	4096 x 2304 pixels
On-board graphics adapter model	Intel® HD Graphics 530
On-board graphics adapter OpenGL version	4
On-board graphics adapter outputs supported	DisplayPort,HDMI,VGA (D-Sub),Embedded DisplayPort (eDP)
OpenGL support	Yes
Package depth	116 mm
Package Height	101 mm
Package type	Retail
Package width	70 mm
PCI Express CEM Revision	3.0
PCI Express configurations	1 x 16,2 x 8,1 x
Processor ARK ID	88188
Processor boost frequency	3.9 GHz
Processor brand name	Intel Core i5Intel Core i5 Processor
Processor cache type	Smart Cache
Processor code	SR2BW
Processor codename	Skylake
Processor family	6th gen Intel® Core™ i5
Processor manufacturer	Intel
Processor model	Intel Core i5
Processor package size	37.5 x 37.5 mm
Processor series	Intel Core i5-6600 Desktop series
Processor socket	LGA 1151 (Socket H4)
Product name	Intel Core i5-6600 (6M Cache, up to 3.90 GHz)
Product Type	Processor
Socket	1151
Status	Launched
Stepping	R0
Supported instruction sets	SSE4.2,AVX 2.0,SSE4.1
Tcase	71 °C
Thermal monitoring technologies	Yes
Thermal solution specification	PCG 2015C
Video compression formats	Yes

Intel Core i5-6600 3.30 GHz CPU
