| Brand |
NETGEAR |
| EAN |
0606449140958 |
| ASIN |
B07XS18HRM |
| MPN |
XSM4316PA-100NES |
| SKU |
XSM4316PA-100NES |
| 10g support |
Yes |
| Authentication |
Guest VLAN,MAC-based authentication |
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Built-in processor |
Yes |

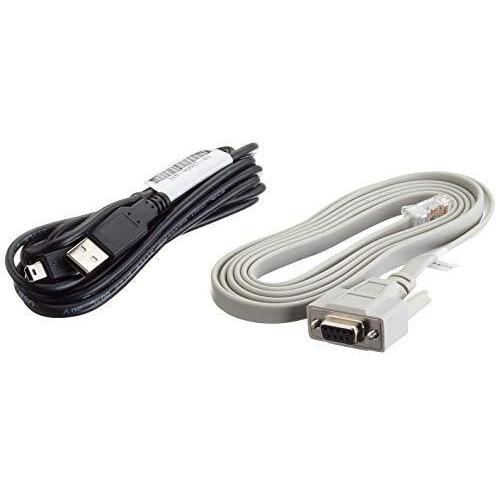

| Console port |
RJ-45/Mini-USB |
| Depth |
345 mm |
| DHCP features |
DHCP client,DHCP snooping,DHCPv6 client,DHCPv6 relay,DHCPv6 server,DHCPv6 snooping |
| Form Factor |
1U |
| Heat dissipation |
186 BTU/h |
| Height |
44 mm |
| IGMP snooping |
Yes |
| Internal memory |
1024 MB |
| IP routing |
Yes |
| Jumbo frames |
9000 |
| Jumbo frames support |
Yes |
| Link aggregation |
Yes |
| MAC address table |
16000 entries |
| Multicast support |
Yes |
| Noise level |
36 dB |
| Number of queues |
8 |
| Number of static routes |
64 |
| Port mirroring |
Yes |
| Power supply included |
Yes |
| Processor frequency |
800 MHz |
| Rack mount kit |
Yes |
| Rack mounting |
Yes |
| Routing protocols |
OSPF,OSPFv3,RIP,RIP-1,RIP-2 |
| Store-and-forward |
Yes |
| Switch layer |
L3 |
| Switch type |
Managed |
| Switching capacity |
320 Gbit/s |
| Throughput |
238 Mpps |
| Virtual LAN features |
Private VLAN,Tagged VLAN,Voice VLAN |
| VLAN support |
Yes |
| Weight |
3.22 kg |
| Width |
212 mm |
