| Brand |
Intel |
| EAN |
0675901279406 |
| ASIN |
B00SMFXEJY |
| Model |
HNS2600TP |
| MPN |
HNS2600TP |
| Chassis type |
Rack |
| Component for |
Server |
| Depth |
172.7 mm |
| Discrete graphics adapter model |
Supported |
| ECC |
Yes |
| ECC supported by processor |
Yes |
| Embedded options available |
No |
| Ethernet interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Form Factor |
Custom 6.8" x 18.9" |
| Graphics output |
VGA |
| HDD interface |
Serial ATA |
| Hot-Plug support |
Yes |
| Intel Fast Memory Access |
Yes |
| Intel flex memory access |
Yes |
| Intel trusted execution technology |
No |
| Intel Xeon series |
E5-2600 |
| Launch date |
Q4'14 |
| Market segment |
SRV |
| Maximum internal memory |
1024 GB |
| Maximum number of PCI Express lanes |
80 |
| Memory channels |
Octa-channel |
| Motherboard chipset |
Intel® C612 |
| Number of DIMM slots |
16 |
| Number of Processors Supported |
2 |
| Number of SATA connectors |
10 |
| On-board graphics adapter |
Yes |
| Parallel processing technology support |
Not supported |
| PCI Express CEM Revision |
3.0 |
| PCI Express x16 slots |
4 |
| Processor manufacturer |
Intel |
| Processor socket |
LGA 2011-v3 |
| Product family |
Intel compute module |
| Product name |

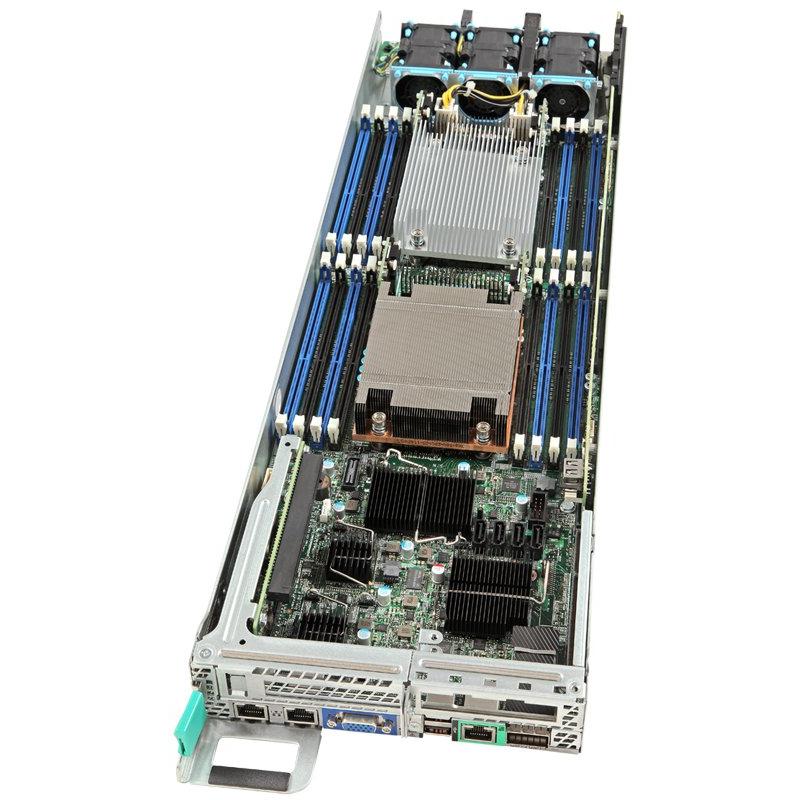

Intel Compute Module HNS2600TP |
| Product Type |
Server/Workstation Board |
| RAID support |
Yes |
| Status |
Discontinued |
| Supported memory clock speeds |
1600,1866,2133 MHz |
| Thermal power |
145 W |
| USB Version |
2.0 |
| VGA (D-Sub) ports quantity |
1 |
| Wi-Fi |
No |
| Width |
480.1 mm |
