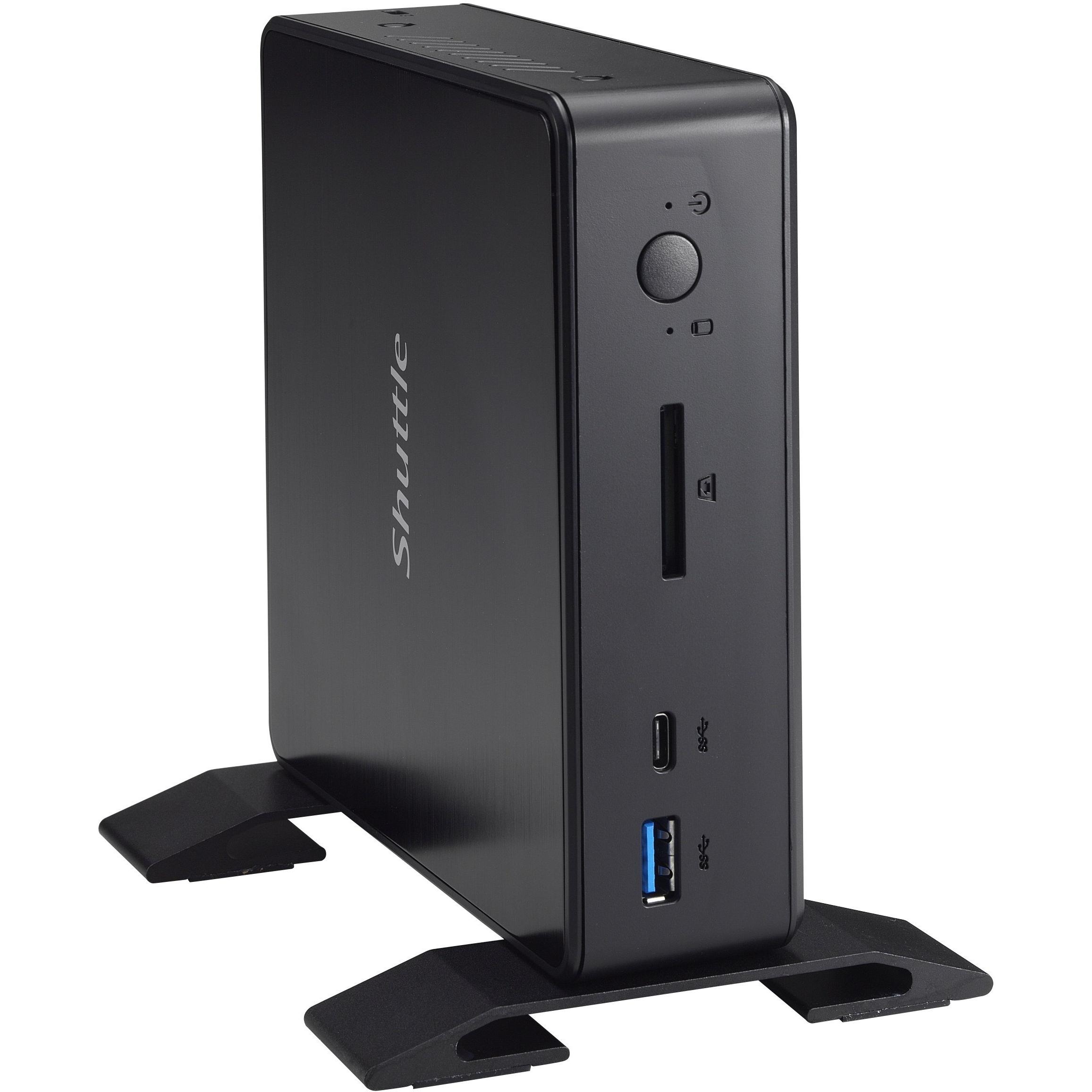

Shuttle XPC nano NC02U BGA 1356 Black PC
Mini black barebone with Intel Celeron 3855U 1.6 GHz, dual‑channel DDR3L up to 32 GB, HDMI 1.4b and DisplayPort 1.2, Wi‑Fi 802.11n, Ethernet I211, active cooling, 65 W AC adapter, VESA mount.
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
| Brand | SHUTTLE |
| EAN | 0887993000862 |
| ASIN | B01KVCUURE |
| Model | NC02U |
| MPN | NC02U |
| AC adapter included | Yes |
| AC adapter output current | 3.42 A |
| AC adapter output voltage | 19 V |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Audio system | HD |
| BIOS memory size | 64 Mbit |
| BIOS type | AMI |
| Built-in processor | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Card reader integrated | Yes |
| Certification | FCC, CE, BSMI, C-Tick, RoHS, ErP |
| Chassis type | Nettop |
| Compatible memory cards | SD,SDHC,SDXC |
| Compatible processor series | Intel® Celeron® |
| Cooling type | Active |
| DC-in jack | Yes |
| Depth | 142 mm |
| Displayport Version | 1.2 |
| DisplayPorts quantity | 1 |
| Drivers included | Yes |
| ECC | No |
| Embedded options available | No |
| Energy Star certified | Yes |
| Enhanced intel speedstep technology | Yes |
| Ethernet LAN | Yes |
| Execute disable bit | Yes |
| Graphics adapter | HD Graphics 510 |
| Graphics adapter family | Intel |
| HDMI version | 1.4b |
| Idle states | Yes |
| Intel 64 | Yes |
| Intel flex memory access | Yes |
| Intel trusted execution technology | No |
| Intel TSX-NI | No |
| LAN controller | Intel® I211 |
| LED indicators | HDD,Power |
| Linux operating systems supported | Yes |
| Maximum internal memory | 32 GB |
| Memory channels | Dual-channel |
| Memory slots type | SO-DIMM |
| Memory voltage | 1.35 V |
| Number of memory slots | 2 |
| On-board graphics adapter | Yes |
| Operating system installed | No |
| Optical drive type | No |
| PCI Express slots version | 2.0 |
| Power cord included | Yes |
| Power supply | 65 W |
| Power supply type | External AC adapter |
| Processor frequency | 1.6 GHz |
| Processor model | 3855U |
| Processor socket | BGA 1356 |
| Product Type | Mini PC barebone |
| Quick start guide | Yes |
| Safety | ETL, CB, BSMI |
| Storage drive interface | Serial ATA III |
| Storage drive sizes supported | 2.5" |
| Supported memory clock speeds | 1600 MHz |
| Supported memory types | DDR3L-SDRAM |
| Supported storage drive types | HDD,SSD |
| Thermal monitoring technologies | Yes |
| VESA mounting | Yes |
| Weight | 400 g |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Width | 42 mm |
