Supermicro 5039A-I Mid-Tower Workstation
Compact mid‑tower workstation powered by Intel C422 chipset and LGA 2066 socket, supporting up to 512 GB DDR4 in eight slots, dual 120 mm fans, 900 W Gold PSU, 2×10/100 Mbps LAN, 7.1 audio, three PCIe x16, six SATA III, two M.2 slots, UEFI BIOS and ECC memory support.
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
| Brand | Supermicro |
| EAN | 0672042305445 |
| ASIN | B07B6MBS5Y |
| Model | SYS-5039A-I |
| MPN | SYS-5039A-I |
| 80 PLUS certification | 80 PLUS Gold |
| AC input frequency | 50/60 |
| AC input voltage | 100 - 240 |
| ACPI version | 3.0 |
| Audio output channels | 7.1 channels |
| Audio system | Realtek ALC1220 |
| BIOS memory size | 256 MB |
| BIOS type | UEFI |
| Built-in processor | No |
| Certification | RoHS |
| Chassis type | Midi-Tower |
| Colour | Black |
| COM ports quantity | 1 |
| Cooling type | Active |
| Depth | 20.7" (525.3 mm) |
| ECC | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN ports | 2 |
| Height | 16.7" (424 mm) |
| Internal USB 2.0 ports quantity | 4 |
| LAN controller | AQtion AQC108,Intel I219LM |
| LED indicators | HDD, Network, Power, System |
| Maximum internal memory | 512 GB |
| Memory slots type | DIMM |
| Microphone in | Yes |
| Motherboard form factor | ATX |
| Number of memory slots | 8 |
| Number of SATA III connectors | 6 |
| On-board graphics adapter | No |
| On/off switch | Yes |
| Operating relative humidity | 8 - 90% |
| PC health monitoring | CPU, Fan, Temperature |
| PCI Express x16 slots | 3 |
| Power supply | 900 W |
| Power Supply Type | Internal power supply unit |
| Processor socket | LGA 2066 |
| RAID levels | 0, 1, 5, 10 |
| Rear fans diameters supported | 120 mm |
| Rear fans installed | 1x 120 mm |
| Storage drive sizes supported | 3.5,5.25" |
| Storage relative humidity | 5 - 95% |
| Supported memory clock speeds | 2133,2400,2666 MHz |
| Supported storage drive types | HDD |
| System management BIOS SMBIOS version | 2.7 |
| Thermal design power | 140 W |
| Weight | 35.5 lbs (16.1 kg) |
| Wi-Fi | No |
| Width | 7.6" (193 mm) |
Related products
Super Micro 1151S X11SSV‑Q
264.72 USD
MCP‑220 0N Accessory by Supermicro
84.19 USD

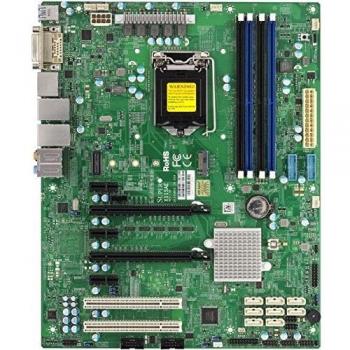

E3-1270V5 Processor Server
