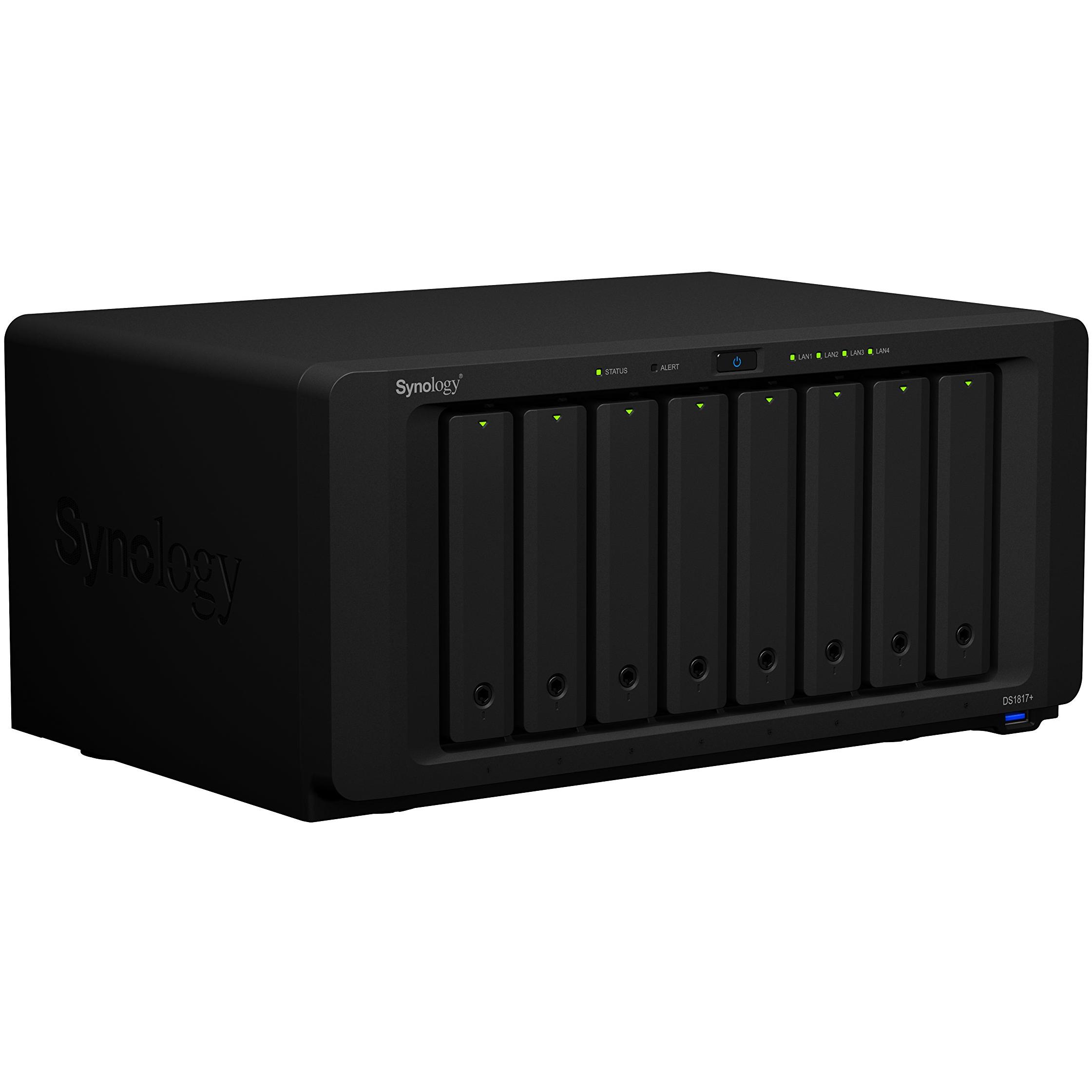

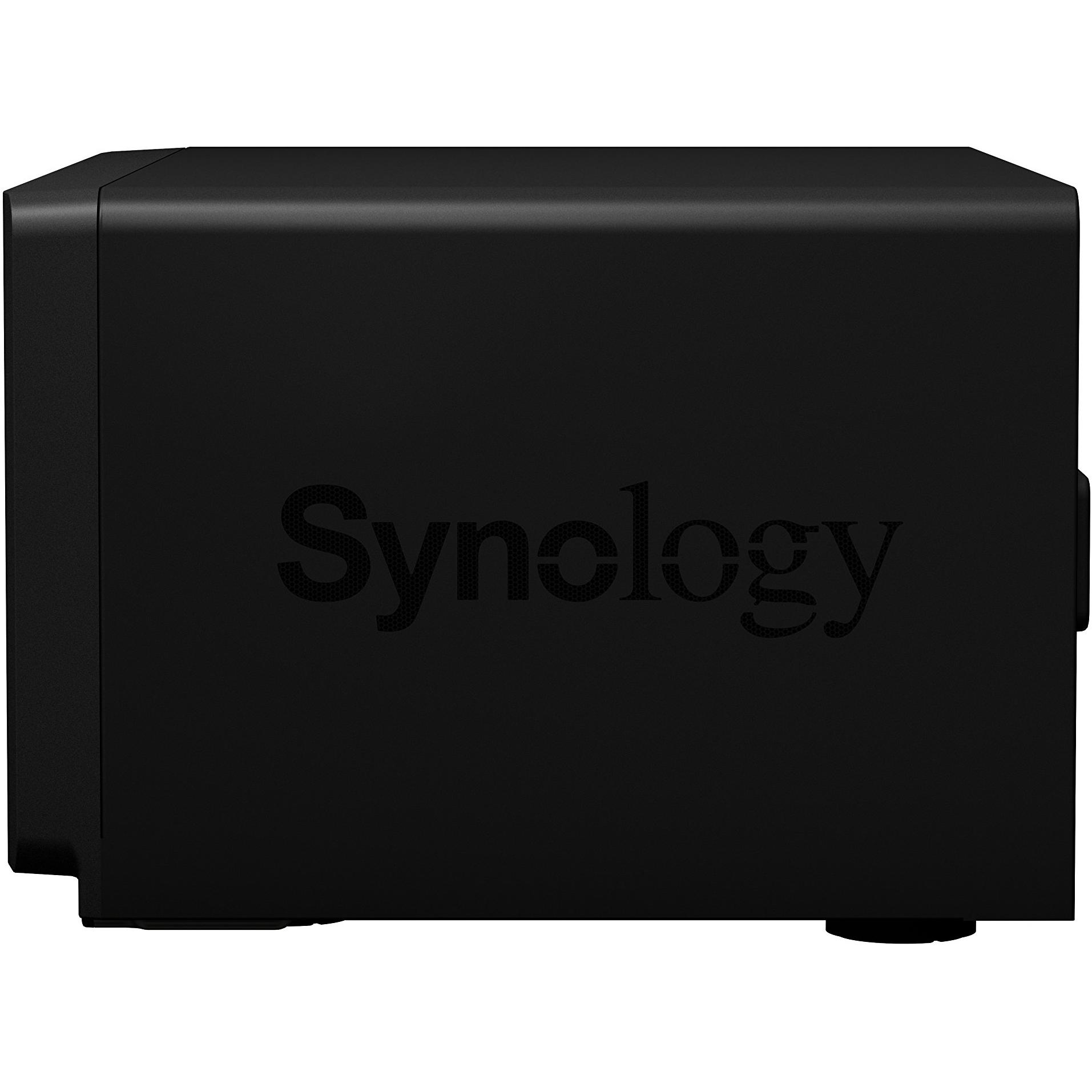

Synology DS1817+ 8 GB Desktop Network Attached Storage Enclosure
Compact yet robust, the DS1817+ packs a 2.4 GHz Intel C2538 with 8 GB DDR3 for swift file sharing and virtualization. Its eight bays fit up to ten HDDs or SSDs, while four Gigabit LANs, dual eSATA, and four USB 3.0 ports deliver versatile connectivity. Active cooling keeps the unit cool under load, and DiskStation Manager supports RAID 0/1/5/6/10/JBOD with BTRFS, NTFS, and ext4 file systems for flexible data protection.
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
| Brand | Synology |
| EAN | 0846504002764 |
| ASIN | B06Y4TJL54 |
| Model | DS1817+ (8GB) |
| MPN | DS1817+ (8GB) |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100-240 V |
| Backup function | Yes |
| Chassis type | Desktop |
| Colour | Black |
| Conflict free processor | No |
| Cooling type | Active |
| Device class | Small & Medium Business |
| DHCP client | Yes |
| DHCP server | Yes |
| ECC supported by processor | Yes |
| Embedded options available | Yes |
| eSATA ports quantity | 2 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN ports | 4 |
| Execute disable bit | No |
| Fan diameter | 4.72" (12 cm) |
| Graphics & IMC lithography | 22 nm |
| Installed storage drive type | No |
| Intel 64 | Yes |
| Intel Virtualization Technology | Yes |
| Intel VT-x with Extended Page Tables | Yes |
| Intel® AES New instructions | Yes |
| Intel® Hyper Threading Technology | No |
| Intel® Turbo Boost Technology | No |
| Internal memory | 8 GB |
| Internal memory type | DDR3 |
| iSCSI support | Yes |
| LED indicators | Yes |
| Mac Compatibility | Yes |
| Mac operating systems supported | Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra |
| Maximum internal memory supported by processor | 64 GB |
| Maximum PCI Express lanes | 16 |
| Memory channels supported by processor | Dual |
| Memory types supported by processor | DDR3-SDRAM,DDR3L-SDRAM |
| Operating altitude | 0 - 120000" (0 - 3048 m) |
| Operating relative humidity | 5 - 95% |
| Operating system installed | DiskStation Manager |
| PCI Express slots version | 2.0 |
| Physical Address Extension PAE | 36 bit |
| Power supply location | Built-in |
| Processor ARK ID | 77981 |
| Processor code | SR1S9 |
| Processor frequency | 2.4 GHz |
| Processor model | C2538 |
| Processor operating modes | 32-bit,64-bit |
| Processor package size | 34 mm |
| Processor socket | BGA 1283 |
| RAID levels | 0,1,5,6,10,JBOD |
| RAID Support | Yes |
| Stepping | B0 |
| Storage drive size | 2.5/3.5" |
| Storage drives supported | 10 |
| Supported storage drive types | HDD,SSD |
| Thermal design power | 15 W |
| Type | NAS |
| UART | Yes |
| Wi-Fi | No |
