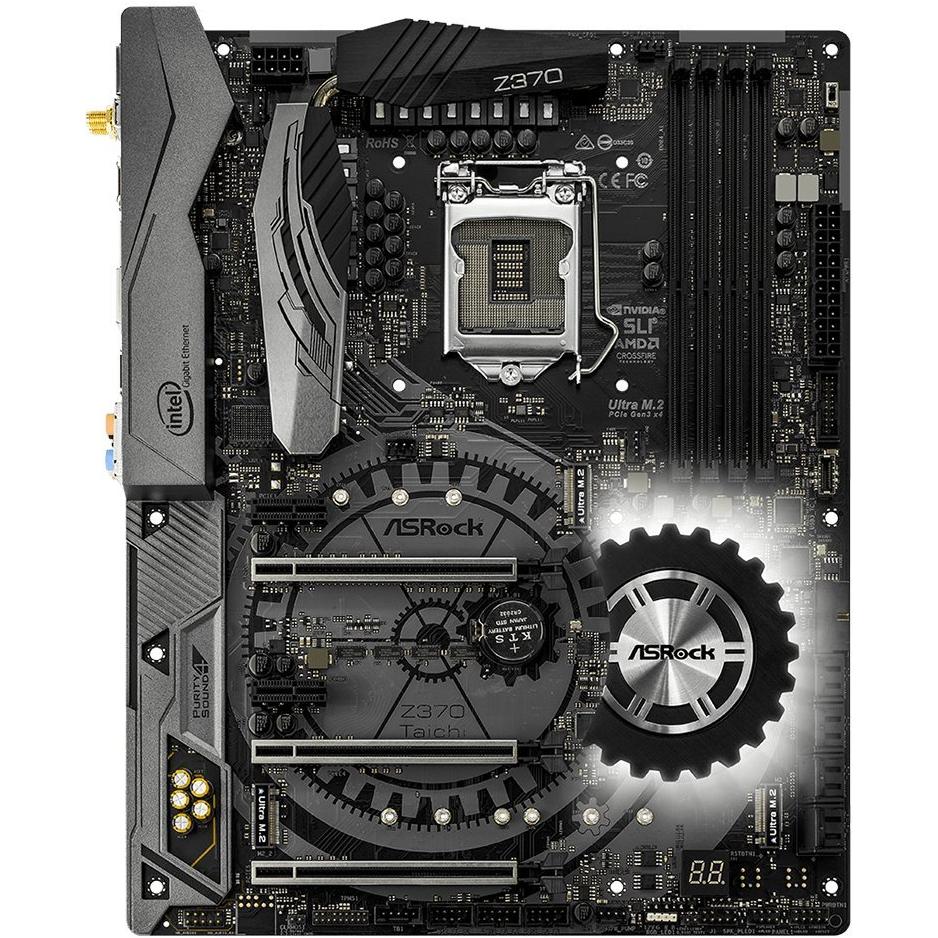

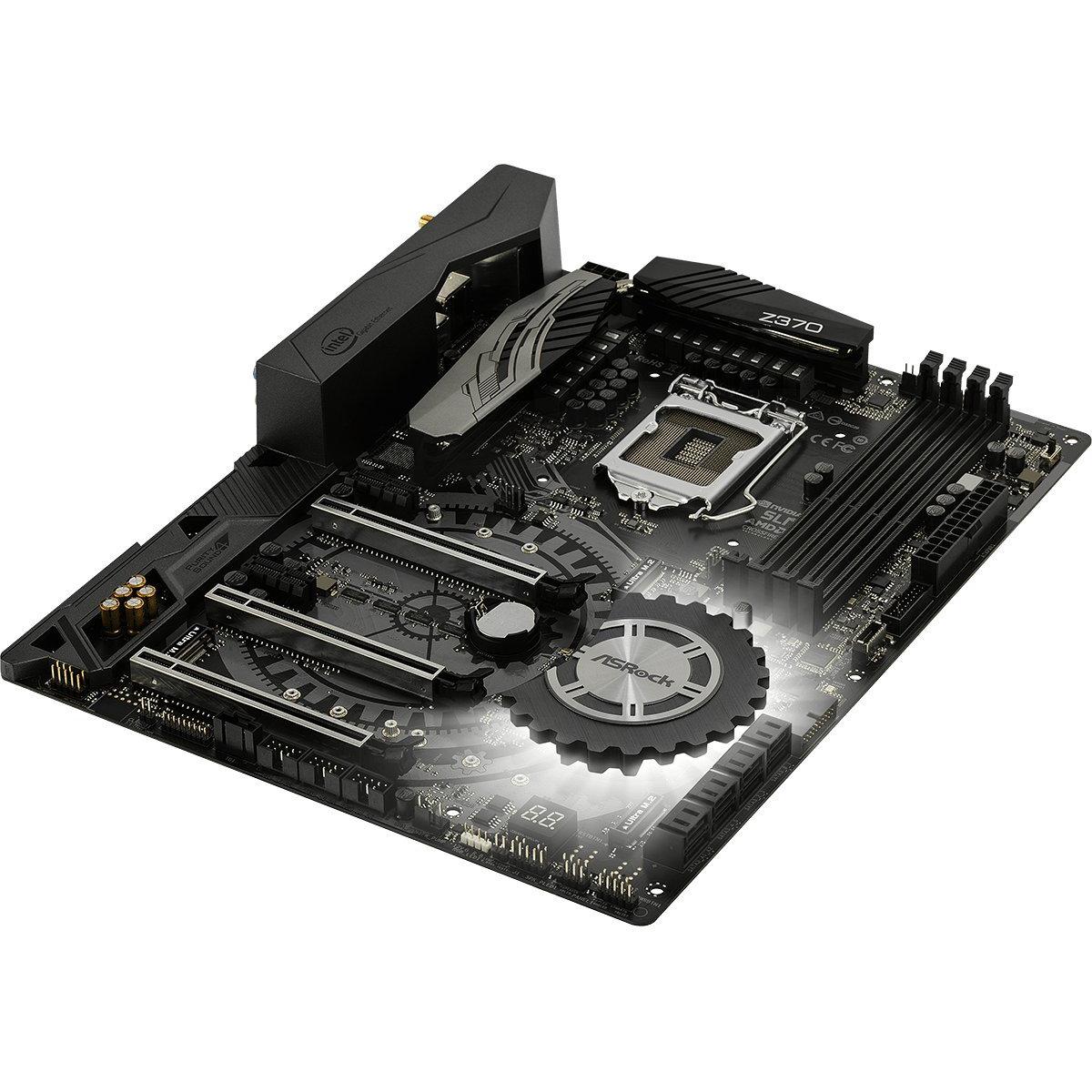

Taichi Z370 Xtreme Intel Socket 1151 Motherboard

eBay

Brand	ASRock
EAN	4717677334340
ASIN	B07638ZKSD
Model	Z370 TAICHI
MPN	Z370 TAICHI
ACPI version	6.0
ATX Power connector 24-pin	Yes
Audio chip	Realtek ALC1220
Audio output channels	7.1 channels
BIOS memory size	16 Mbit
BIOS type	UEFI
Bluetooth	Yes
Bluetooth version	4.2
Cables included	SATA
Certification	FCC, CE, ErP/EuP ready
Component for	PC
Cooling type	Passive
CPU fan connector	Yes
DirectX Version	12.0
Displayports quantity	1
Drivers included	Yes
EPS power connector 8-pin	Yes
Ethernet interface type	Gigabit Ethernet
Ethernet LAN ports	2
Front panel audio connector	Yes
Front panel connector	Yes
Graphics adapter family	Intel
Intel Extreme Memory Profile XMP	Yes
Maximum internal memory	65536 MB
Maximum resolution	4096x2304
Memory channels	Dual-channel
Memory slots type	DIMM
Motherboard form factor	ATX
Non-ECC	Yes
Number of M.2 M slots	3
Number of memory slots	4
Number of SATA connectors	8
Parallel processing technology support	2-Way CrossFireX,2-Way SLI,3-Way CrossFireX,Quad-GPU CrossFireX,Quad-GPU SLI
PC health monitoring	CPU,FAN,Power supply,Temperature,Voltage
Processor socket	LGA 1151 (Socket H4)
Quick installation guide	Yes
RAID levels	0,1,5,10
S/PDIF out port	Yes
Supported memory clock speeds	2133,4333 MHz
Supported storage drive types	HDD,SSD
System management BIOS SMBIOS version	2.7
TPM connector	Yes
Unbuffered memory	Yes
Wake-on-LAN ready	Yes
Wi-Fi standards	802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n)
Windows operating systems supported	Yes
