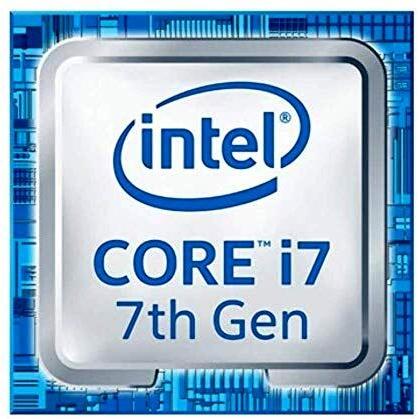

Intel CM8067702868314 Quad Core i7-7700 Processor
Quad‑core Intel Core i7‑7700 delivers 3.6 GHz base and 4.2 GHz boost with 8 MB Smart Cache, supports DDR4 up to 2400 MHz, integrates HD Graphics 630 for 4K output, and runs on a 65W TDP.
Share: ![]()
![]()
![]()
![]()
![]()
![]()
smartteck.co.uk
Sponsored
ComputersDeal.co.uk
Intel Core i7-7700 processor 3.6 GHz 8 MB Smart Cache
ComputersDeal.co.uk
23-03-2025 22:11:09
SmartTeck.co.uk | Brand | Intel |
| EAN | 5706998537065 |
| ASIN | B085LFQRP2 |
| Bus bandwidth | 8 |
| Bus Type | DMI3 |
| Bus type units | GT/s |
| Commodity Classification Automated Tracking System (CCATS) | G077159 |
| Component for | PC |
| Cooler included | No |
| Export Control Classification Number (ECCN) | 5A992C |
| Generation | 7th Generation |
| Harmonized System HS code | 8542310001 |
| Intel Identity Protection Technology version | 1.00 |
| Intel Optane Memory Ready | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
| Launch date | Q1'17 |
| Market segment | Desktop |
| Maximum CPU configuration | 1 |
| Maximum graphics adapter memory | 64 GB |
| Maximum internal memory | 65536 MB |
| Maximum PCI Express lanes | 16 |
| Maximum resolution & refresh rate (DisplayPort) | 4096x2304@60Hz |
| Memory channels | Dual-channel |
| Memory clock speeds supported by processor | 1333,1600,2133,2400 MHz |
| Memory types supported by processor | DDR4-SDRAM,DDR3L-SDRAM |
| Memory voltage supported by processor | 1.35 V |
| On-board graphics adapter base frequency | 350 MHz |
| On-board graphics adapter DirectX version | 12 |
| On-board graphics adapter dynamic frequency | 1150 MHz |
| On-board graphics adapter maximum resolution (eDP - Integrated Flat Panel) | 4096 x 2304 pixels |
| On-board graphics adapter OpenGL version | 4 |
| On-board graphics adapter outputs supported | DisplayPort,Embedded DisplayPort (eDP),HDMI |
| On-board graphics adapter refresh rate at maximum resolution (DisplayPort) | 60 Hz |
| On-board graphics adapter refresh rate at maximum resolution (HDMI) | 24 Hz |
| Onboard graphics adapter model | Intel® HD Graphics 630 |
| Package type | Retail box |
| PCI Express CEM revision | 3.0 |
| PCI Express configurations | 1 x 16,2 x |
| Processor ARK ID | 97128 |
| Processor base frequency | 3.6 GHz |
| Processor boost frequency | 4.2 GHz |
| Processor brand name | 7th Gen Intel Core i7 processors |
| Processor cache type | Smart Cache |
| Processor code | SR338 |
| Processor codename | Kaby Lake |
| Processor lithography | 14 nm |
| Processor socket | LGA 1151 (Socket H4) |
| Status | Launched |
| Stepping | B0 |
| Supported instruction sets | SSE4.1,SSE4.2,AVX 2.0 |
| Thermal design power | 65 W |
| Thermal solution specification | PCG 2015C |
| Video decoding | Yes |
