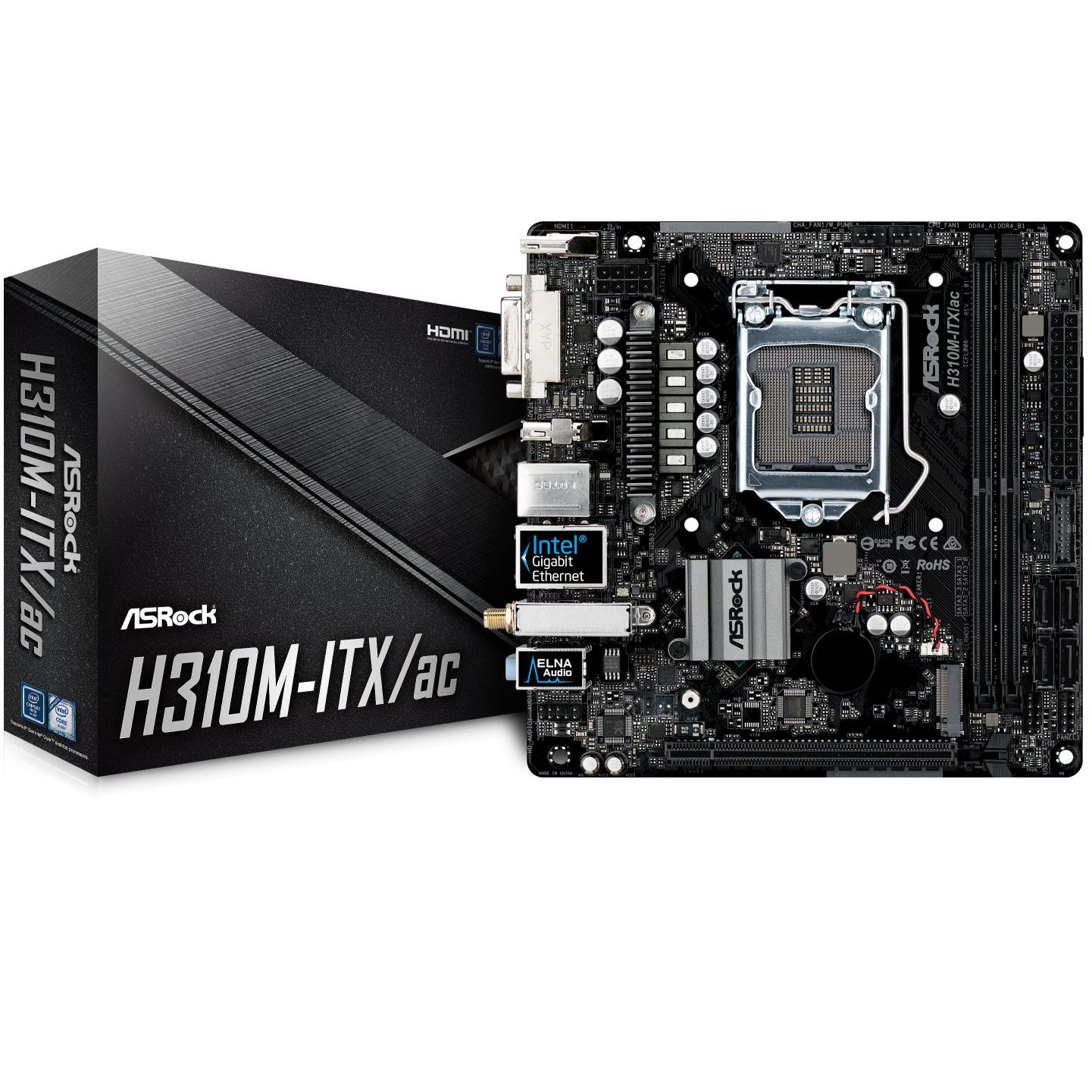

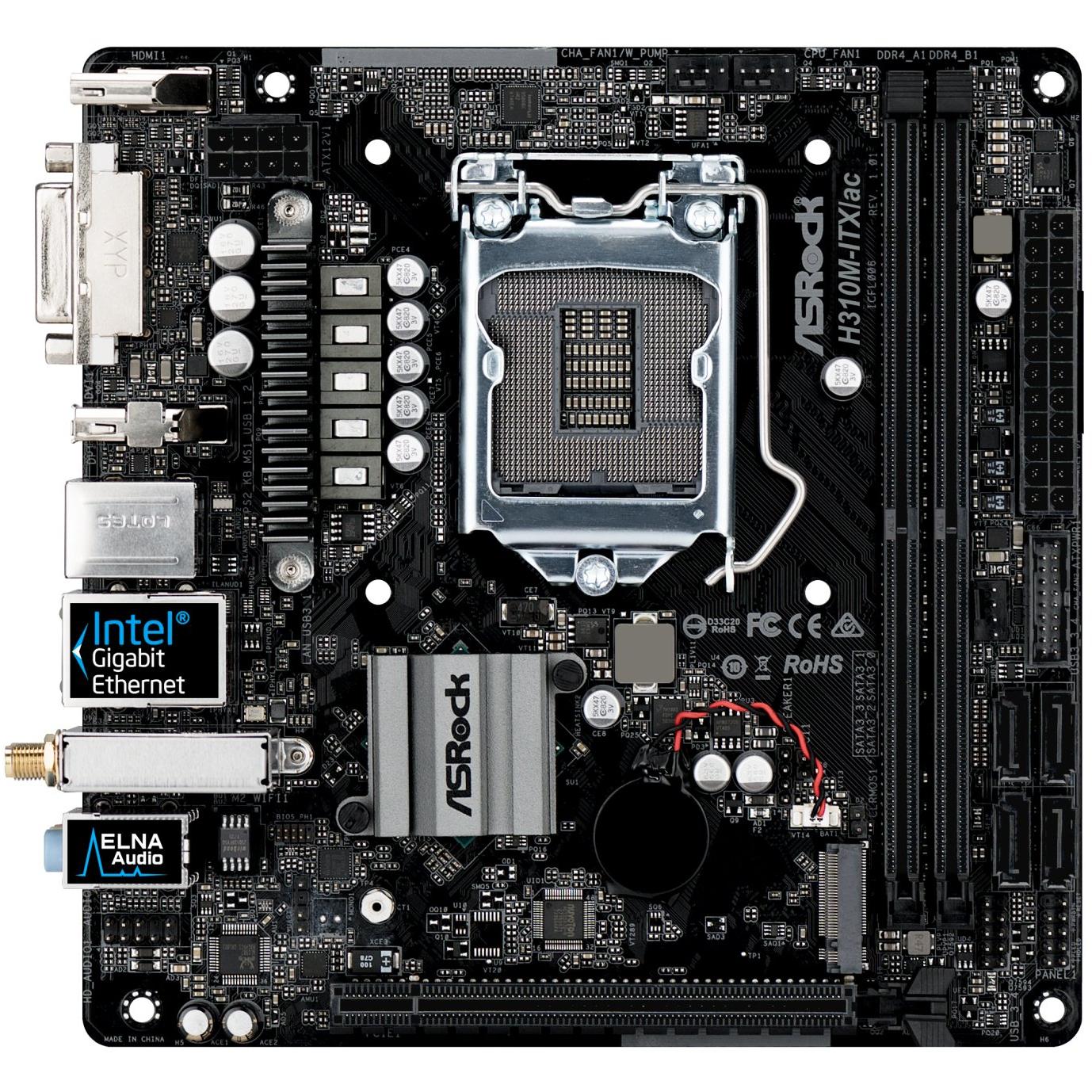

Mini‑ITX Intel LGA1151 Platform – H310M/AC
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
| Brand | ASRock |
| EAN | 4717677335194 |
| Model | 90-MXB7A0-A0UAYZ |
| MPN | 90-MXB7A0-A0UAYZ |
| SKU | 90-MXB7A0-A0UAYZ |
| ASIN | B07BMQZWV2 |
| 64-bit Support | Yes |
| Audio line in ports | 1 x 3.5mm Jack |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| Chassis intrusion connector | 1 x Chassis Intrusion |
| Chipset manufacturer | Intel |
| Cooling fan support | 1 x CPU Fan1 x Chassis/Water Pump Fan |
| CPU Socket | Socket 1151 |
| Displayport connection | Yes |
| DisplayPorts | 1 x DisplayPort 1.2 |
| Drivers | Included |
| DVI connection | Yes |
| Firewire | No |
| Form factor | Mini-ITX Motherboard |
| HDMI connection | Yes |
| Integrated Graphics Supported | Yes |
| Internal USB 3.0 Header | Yes |
| Keyboard/mouse combo port | 1 x PS/2 |
| Length | 170 mm |
| M.2 Support | Yes |
| Maximum Installed Processors | 0 (1) |
| Maximum RAM | 32 GB |
| Memory channel | Dual |
| Memory slot | 2 x DIMM |
| Memory type | DDR4 |
| Motherboard chipset | Intel H310 |
| Motherboard form factor | ITX |
| Motherboard Power Connectors | 4 + 4-Pin |
| Multi GPU Support | No |
| Network Speeds Supported | 10/100/1000 |
| Number of PCI Express Slots | 1 x PCI Express 3.0 x16 (@ x16) |
| On-board Audio Type | 7.1 |
| On-board RGB Control | None |
| Other Connectors | 1 x M.2, M Key (Type 2280) |
| Power connector port | 1 x 20+4-pin ATX1 x 4+4-pin CPU |
| Raid supported | No |
| RJ-45 ports | 1 x RJ-45 |
| SATA III Support | Yes |
| SATA Supported | Yes |
| Skip audio test | No |
| Software Included | UtilitiesAntiVirus Software (Trial Version)Google Chrome Browser and Toolbar |
| Thunderbolt | No |
| USB 3.0 Support | Yes |
| USB 3.1 Support | No |
| USB Connectors | 1 x USB 3.01 x USB 2.0 |
| VGA connection | No |
| WiFi Speed | 433 Mbps |
| Wireless Network | Yes |
