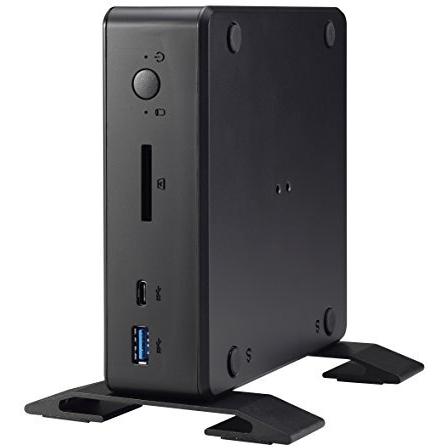

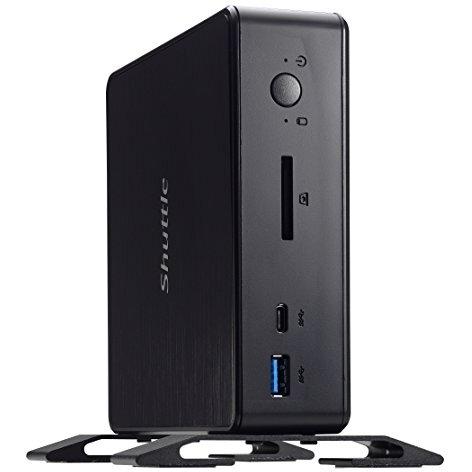

Multi-Toned Shuttle NC03U3 Chipset
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
| Brand | SHUTTLE |
| EAN | 0887993001289 |
| ASIN | B071VWWMQW |
| Model | NC03U3 |
| MPN | NC03U3 |
| AC adapter included | Yes |
| AC adapter output current | 3.42 A |
| AC adapter output voltage | 19 |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Audio system | 1280x720 |
| BIOS type | UEFI |
| Built-in processor | Yes |
| Cable lock slot | Yes |
| Cable Lock Slot | Yes |
| Cable lock slot type | Kensington |
| Card reader integrated | Yes |
| Certification | CE, FCC, BSMI, RCM, R&TTE, VCCI, RoHS, ErP |
| Chassis type | Nettop |
| Colour | Black |
| Compatible memory cards | SD,SDHC,SDXC |
| Compatible operating systems | - Windows 10 64-bit - Linux 64-bit |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Cooling type | Active |
| Depth | 142 mm |
| Displayports quantity | 1 |
| Drivers included | Yes |
| ECC | No |
| Embedded options available | Yes |
| Energy Star certified | Yes |
| Enhanced intel speedstep technology | Yes |
| Ethernet LAN | Yes |
| Execute disable bit | Yes |
| Graphics adapter | HD Graphics 620 |
| Graphics adapter family | Intel |
| Height | 42 mm |
| Housing material | Plastic |
| Idle states | Yes |
| Intel 64 | Yes |
| Intel clear video technology | Yes |
| Intel flex memory access | Yes |
| Intel Stable Image Platform Program | No |
| Intel trusted execution technology | No |
| Intel TSX-NI | No |
| Intel Virtualization Technology for Directed I/O | Yes |
| Intel VT-x with Extended Page Tables | Yes |
| Intel® AES New instructions | Yes |
| Intel® Clear Video HD Technology | Yes |
| Intel® Hyper Threading Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® My WiFi Technology | Yes |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Small Business Advantage | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display | Yes |
| LED indicators | Power, Status |
| Maximum internal memory | 32768 MB |
| Maximum resolution | 3840 x 2160 pixels |
| Memory channels | Dual-channel |
| Memory slots type | SO-DIMM |
| Memory voltage | 1.2 V |
| MIC port | Yes |
| Motherboard chipset | Intel SoC |
| Number of memory slots | 2 |
| On-board graphics adapter | Yes |
| Operating relative humidity | 10 - 90 % |
| Operating system installed | No |
| Optical drive type | No |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| PCI Express slots version | 3.0 |
| Power cord included | Yes |
| Power supply | 65 W |
| Power supply type | External AC adapter |
| Processor family | 7th gen Intel® Core™ i3 |
| Processor frequency | 2.40 GHz |
| Processor lithography | 14 nm |
| Processor model | i3-7100U |
| Processor socket | BGA 1356 |
| Processor threads | 4 |
| Product Type | Mini PC barebone |
| Quick start guide | Yes |
| Safety | CB, BSMI, ETL, CCC |
| Storage drive interface | Serial ATA III |
| Storage drive sizes supported | 2.5" |
| Supported memory clock speeds | 2133 MHz |
| Supported storage drive types | HDD,SSD |
| Thermal design power | 15 W |
| Thermal monitoring technologies | Yes |
| VESA mounting | Yes |
| VESA Mounting | Yes |
| Weight | 400 g |
| Wi-Fi | Yes |
| Wi-Fi standards | IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
