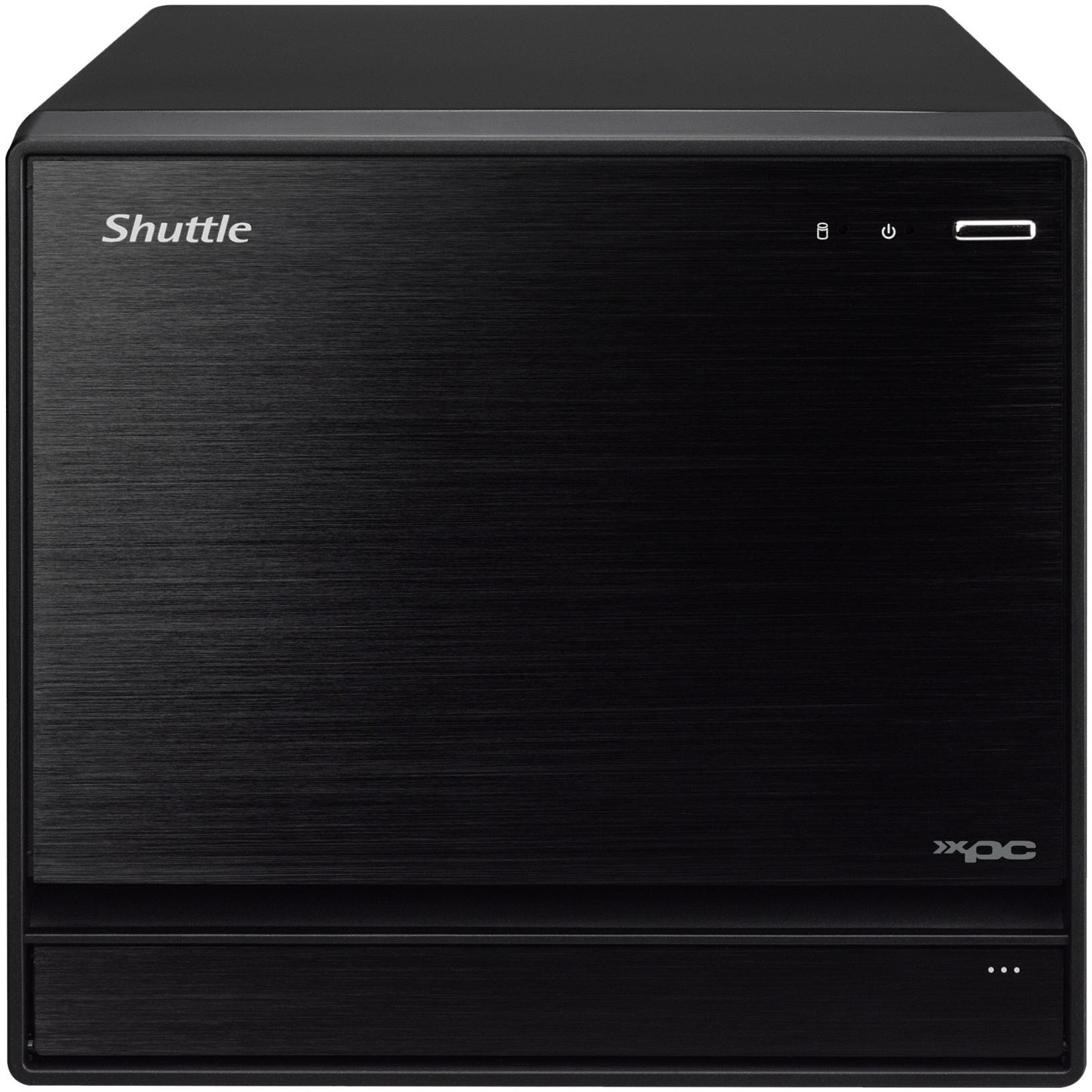

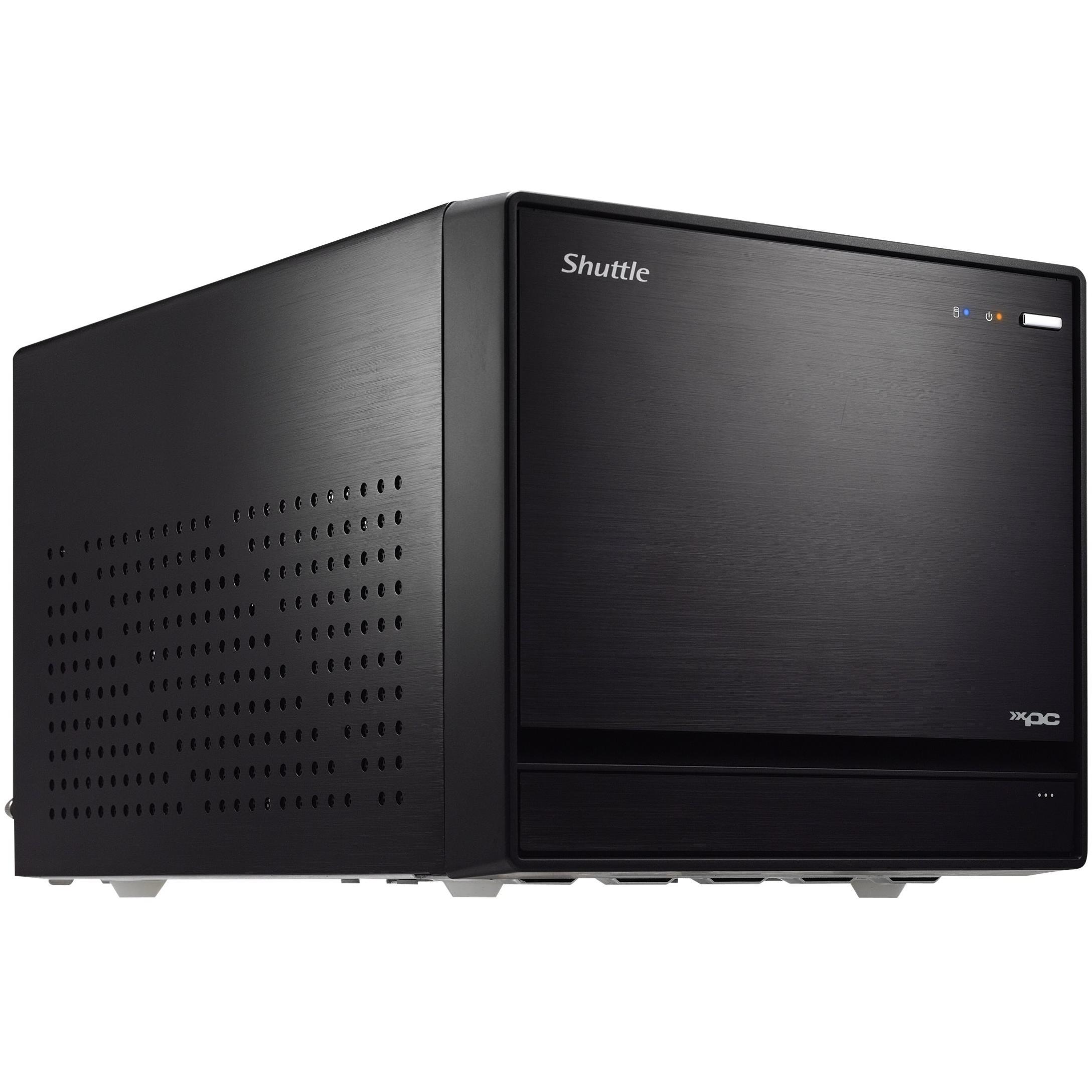

Shuttle SZ170R8 Celeron/Core i3/i5/i7 Barebone
Powerful micro‑tower barebone with LGA1151 socket, 500W internal PSU, dual‑channel DDR4 up to 64 GB, five SATA III slots, 7.1 HD audio, two DisplayPort, HDMI, eSATA, eight USB 3.0 ports and active cooling in a slim aluminum chassis.
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
| Brand | SHUTTLE |
| EAN | 0887993000619 |
| ASIN | B01C87CQEK |
| Model | SZ170R8 |
| MPN | SZ170R8 |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Audio output channels | 7.1 channels |
| Audio system | 1280x720 |
| Built-in processor | No |
| Cable lock slot | Yes |
| Cable Lock Slot | Yes |
| Cable lock slot type | Kensington |
| Certification | FCC, CE, BSMI, C-Tick, RoHS, ErP 2013 |
| Chassis type | Desktop |
| Colour | Black |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Cooling type | Active |
| Depth | 332 mm |
| Displayports quantity | 2 |
| Energy Star certified | Yes |
| eSATA ports quantity | 1 |
| Ethernet LAN | Yes |
| HDMI version | 1.4 |
| Height | 198 mm |
| Housing material | Aluminium |
| LED indicators | HDD, Power |
| Linux operating systems supported | Yes |
| Maximum internal memory | 65536 MB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Memory voltage | 1.2 V |
| Microphone in | Yes |
| Number of memory slots | 4 |
| Number of storage drives supported | 5 |
| On-board graphics adapter | No |
| Operating relative humidity | 10 - 90 % |
| Operating system installed | No |
| Power supply | 500 W |
| Power supply type | Internal power supply unit |
| Processor socket | LGA 1151 (Socket H4) |
| Product Type | PC barebone |
| RAID levels | 0, 1, 5, 10 |
| Safety | ETL, CB, BSMI |
| Storage drive interface | Serial ATA III |
| Storage drive sizes supported | 3.5" |
| Supported memory clock speeds | 2133 MHz |
| Supported storage drive types | HDD,SSD |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity | 8 |
| Wi-Fi | No |
| Width | 216 mm |
