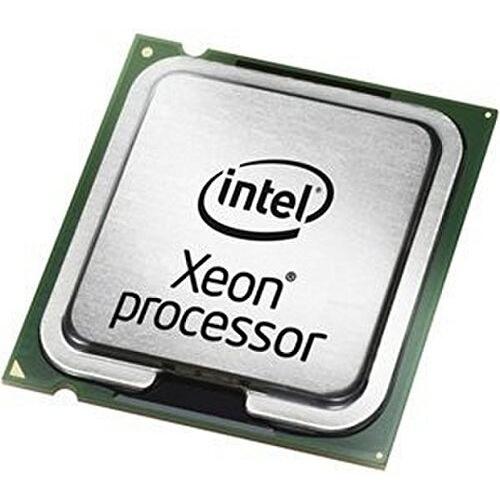

Xeon E3-1230 V6 CPU
Intel Xeon E3‑1230V6 offers a 4‑core, 8‑thread architecture running at 3.5 GHz base and up to 3.9 GHz turbo, with an 8 MB Smart Cache, dual‑channel DDR4/DDR3L support for up to 64 GB, PCIe 3.0 lanes, and a 72 W TDP for efficient server or workstation performance.
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
| Brand | Intel |
| EAN | 7330381280474 |
| ASIN | B06Y3ZGJDB |
| Model | CM8067702870650 |
| MPN | CM8067702870650 |
| SKU | CM8067702870650 |
| Box | No |
| Bus bandwidth | 8 |
| Bus Type | DMI3 |
| Bus type units | GT/s |
| Component for | Server/Workstation |
| Conflict free processor | Yes |
| ECC | Yes |
| Embedded options available | No |
| Enhanced intel speedstep technology | Yes |
| Execute disable bit | Yes |
| Graphics output | N/A |
| Harmonized System HS code | 8542310001 |
| Idle states | Yes |
| Intel 64 | Yes |
| Intel clear video technology | No |
| Intel enhanced halt state | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Software Guard Extensions | Yes |
| Intel trusted execution technology | Yes |
| Intel TSX-NI | Yes |
| Intel Virtualization Technology | Yes |
| Intel Virtualization Technology for Directed I/O | Yes |
| Intel VT-x with Extended Page Tables | Yes |
| Launch date | Q1'17 |
| Market segment | SRV |
| Maximum CPU configuration | 1 |
| Maximum internal memory | 65536 MB |
| Maximum internal memory supported by processor | 64 GB |
| Maximum number of PCI Express lanes | 16 |
| Memory bandwidth supported by processor | 37.5 GB/s |
| Memory channels | Dual-channel |
| Memory clock speeds supported by processor | 1866,2400 MHz |
| Memory types supported by processor | DDR3L-SDRAM,DDR4-SDRAM |
| On-board graphics adapter | No |
| On-board graphics adapter 4K support | No |
| PCI Express CEM Revision | 3.0 |
| PCI Express configurations | 1x16,1x8+2x4,2x8 |
| Processor ARK ID | 97474 |
| Processor boost frequency | 3.9 GHz |
| Processor brand name | Intel Xeon |
| Processor cache type | Smart Cache |
| Processor code | SR328 |
| Processor codename | Kaby Lake |
| Processor cores | 4 |
| Processor family | Intel® Xeon® E3 v6 |
| Processor frequency | 3.50 GHz |
| Processor lithography | 14 nm |
| Processor manufacturer | Intel |
| Processor model | E3-1230 v6 |
| Processor package size | 37.5 x 37.5 mm |
| Processor series | Intel Xeon E3-1200 v6 |
| Processor socket | LGA 1151 (Socket H4) |
| Product Type | Processor |
| Status | Launched |
| Stepping | B0 |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| Thermal design power | 72 W |
| Thermal monitoring technologies | Yes |
| VID voltage range | 0.55 - 1.52 V |
