Intel NUC 7i5BNH Mini PC (4 GB RAM, 16 GB SSD, 1 TB HDD)
Tiny UCFF chassis packs a dual‑core i5‑7260U up to 3.4 GHz, 4 GB DDR4, 1 TB HDD and Intel Iris Plus 640 graphics with HDMI 2.0a and USB‑C DP output; it includes Wi‑Fi 5, Bluetooth 4.2, a Kensington lock, 6×USB 3.0, Gigabit Ethernet, 7.1‑ch audio and an SDXC reader for flexible expansion.
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
| Brand | Intel |
| EAN | 0735858351140 |
| ASIN | B075VT9BDZ |
| Model | BOXNUC7i5BNHXF |
| MPN | BOXNUC7i5BNHXF |
| SKU | BOXNUC7i5BNHXF |
| Audio output channels | 7.1 channels |
| BIOS memory size | 64 Mbit |
| BIOS type | EEPROM |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| Bus Type | OPI |
| Cable lock slot | Yes |
| Cable Lock Slot | Yes |
| Cable lock slot type | Kensington |
| Cabling technology | 10/100/1000Base-T(X) |
| Card reader integrated | Yes |
| Chassis type | Nettop |
| Colour | Black,Grey |
| Compatible memory cards | SDXC |
| Compatible operating systems | Windows 10, 64-bit* |
| Compatible processor series | Intel Core i5 |
| Conflict free processor | Yes |
| Consumer infrared Rx sensor | Yes |
| DC input voltage | 12-19 DC |
| DC-in jack | Yes |
| Depth | 111 mm |
| Discrete graphics adapter | No |
| Discrete graphics adapter model | Not available |
| Display included | No |
| Displays Supported | 3 |
| DVI port | No |
| ECC | No |
| ECC supported by processor | No |
| Embedded options available | No |
| Enhanced intel speedstep technology | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN ports | 1 |
| Execute disable bit | Yes |
| Form Factor | UCFF (4" x 4") |
| Graphics output | HDMI 2.0a; USB-C (DP1.2) |
| HDD Capacity | 1000 GB |
| HDD interface | Serial ATA III |
| Height | 51 mm |
| Idle states | Yes |
| Intel 64 | Yes |
| Intel clear video technology | Yes |
| Intel flex memory access | Yes |
| Intel Optane Memory Ready | Yes |
| Intel rapid storage technology | Yes |
| Intel Software Guard Extensions | Yes |
| Intel Stable Image Platform Program | Yes |
| Intel trusted execution technology | No |
| Intel TSX-NI | Yes |
| Intel Virtualization Technology | Yes |
| Intel VT-x with Extended Page Tables | Yes |
| Intel® AES New instructions | Yes |
| Intel® High Definition Audio | Yes |
| Intel® Hyper Threading Technology | Yes |
| Intel® Identity Protection Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® My WiFi Technology | Yes |
| Intel® OS Guard | Yes |
| Intel® Platform Trust Technology (Intel® PTT) | Yes |
| Intel® Secure Key | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® Turbo Boost Technology | 2 |
| Internal memory | 4096 MB |
| Internal memory type | DDR4-SDRAM |
| M.2 card slot (storage) | 22x42/80 |
| Manual | Yes |
| Market positioning | Business |
| Maximum internal memory | 32768 MB |
| Maximum number of PCI Express lanes | 12 |
| Memory bandwidth supported by processor | 34.1 GB/s |
| Memory channels | Dual-channel |
| Memory channels supported by processor | Dual |
| Memory clock speed | 2400 MHz |
| Memory clock speeds supported by processor | 1600,1866,2133 MHz |
| Memory layout | 1 x 4 GB |
| Memory types supported by processor | DDR3L,DDR4-SDRAM,LPDDR3-SDRAM |
| MIC port | Yes |
| Microphone in | No |
| Motherboard form factor | UCFF |
| On-board graphics adapter | Yes |
| On-board graphics adapter base frequency | 300 MHz |
| On-board graphics adapter DirectX version | 12.0 |
| On-board graphics adapter dynamic frequency | 950 MHz |
| On-board graphics adapter family | Intel Iris Plus Graphics |
| On-board graphics adapter model | Intel® Iris™ Plus Graphics 640 |
| Operating system installed | Windows 10 Home |
| Optical drive type | No |
| PCI Express configurations | 1x2+2x1,1x4,2x2,4x1 |
| PCI Express slots version | 3.0 |
| Placement supported | Horizontal/Vertical |
| Processor ARK ID | 97539 |
| Processor boost frequency | 3.4 GHz |
| Processor cache type | Smart Cache |
| Processor code | SR363 |
| Processor codename | Kaby Lake |
| Processor family | 7th gen Intel® Core™ i5 |
| Processor frequency | 2.2 GHz |
| Processor manufacturer | Intel |
| Processor model | i5-7260U |
| Processor package size | 42 x 24 x 1.3 mm |
| Processor series | Intel Core i5-700 Desktop Series |
| Processor socket | BGA 1356 |
| Product family | Intel NUC |
| Product Type | Mini PC |
| RoHS compliance | Yes |
| Status | Discontinued |
| Storage media | HDD |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| Thermal design power | 15 W |
| Thermal monitoring technologies | Yes |
| Tjunction | 100 °C |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Trusted platform module | No |
| TVI port | No |
| USB Ports | 6 |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Width | 115 mm |
Related products

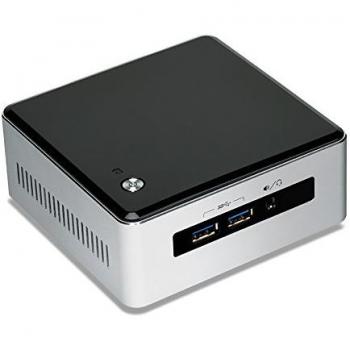

Intel NUC Kit NUC5i5MYHE - NEW
